Application of N36100 series in DC-DC power module aging test

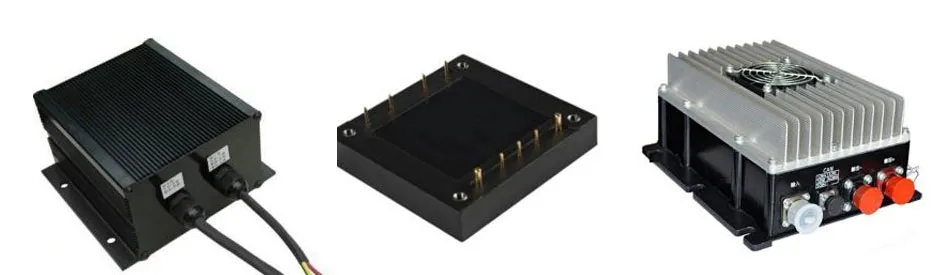

The DC-DC power module can realize high/low conversion of DC power. The converted DC power can be output in a single channel or multiple channels of different specifications. It can be widely used in various industrial products. Before the DC-DC power module leaves the factory, it is usually necessary to conduct strict aging tests on them. Related tests can verify the product's endurance performance and provide reference data for product troubleshooting, quality improvement and service life improvement.
Next, we will take the use characteristics of NGI N36100 wide-range DC power supply as an example to illustrate what excellent characteristics the equipment for power module aging test should have.

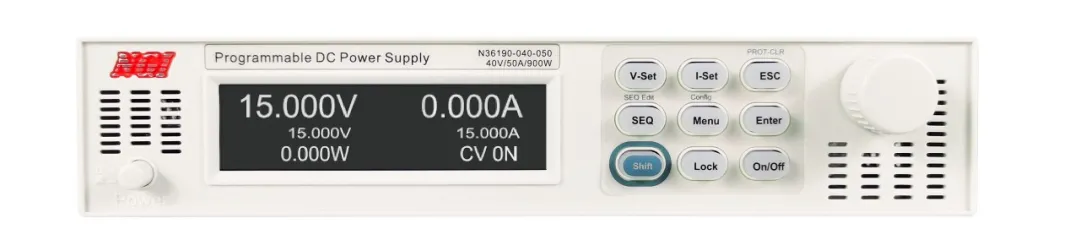

The N36100 series is a wide-range programmable DC power supply independently developed by our company for the testing needs of different test scenarios such as laboratory testing, system integration testing, and large-scale production line testing. The product provides a wealth of optional test parameter configurations, with a variety of test functions and protection functions, which can effectively meet the needs of batch aging tests of multiple models of multiple DC-DC power modules.

● Easy switching between benchtop/integration

N36100 adopts the ultra-small design of 1U and 19”1/2 wide, it can be used as a stand-alone benchtop or easily switched to integrated use in a cabinet. The single machine is small and easy to carry and can be flexibly moved to different workstations for testing. 64 devices can be integrated in a 32U cabinet while occupying a small space, which can meet the multi-station testing needs of batch equipment and has the excellent characteristics of high test capacity and high test efficiency.

● Convenient test setting

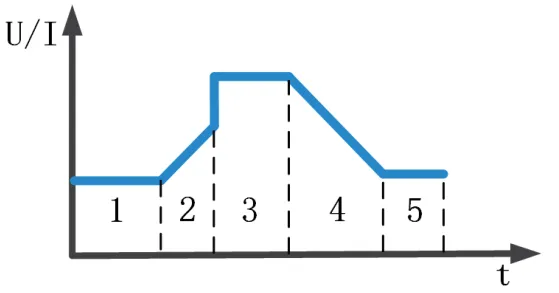

The N36100 series provides SEQ editing function with up to 100 steps of sequence editing. The output voltage, voltage slope, output current, current slope and single-step running time can be set according to the test requirements. It has multiple communication function modes such as LAN, CAN, RS232, RS485, etc.

● Wide range parameters match multiple test requirements

The N36100 series provides a wide range of optional parameters, with a maximum output power of 900W, a maximum output voltage of 650V, and a maximum output current of 100A, which can meet the aging test requirements of DC-DC power modules of different specifications.
