Customer Case | Solving Low-Altitude Test Challenges: NGI Full-Stack Solutions Empower World-Leading Drone/eVTOL Manufacturers

With low-altitude economy officially written into China’s national strategy, drone and electric vertical-take-off-and-landing (eVTOL) markets are exploding. CAAC data show the sector reached RMB 670 billion in 2024 and is forecast to hit RMB 3.5 trillion by 2035.

NGI’s high-performance instruments andfull-stacksolutions already support world-top players at every stage—from PCBA and sub-modules to complete vehicle certification. Below are selected customer stories and applications.

Case 1 – Flight-Control PCBA Functional Test for a Top Drone Manufacturer

Customer Requirement

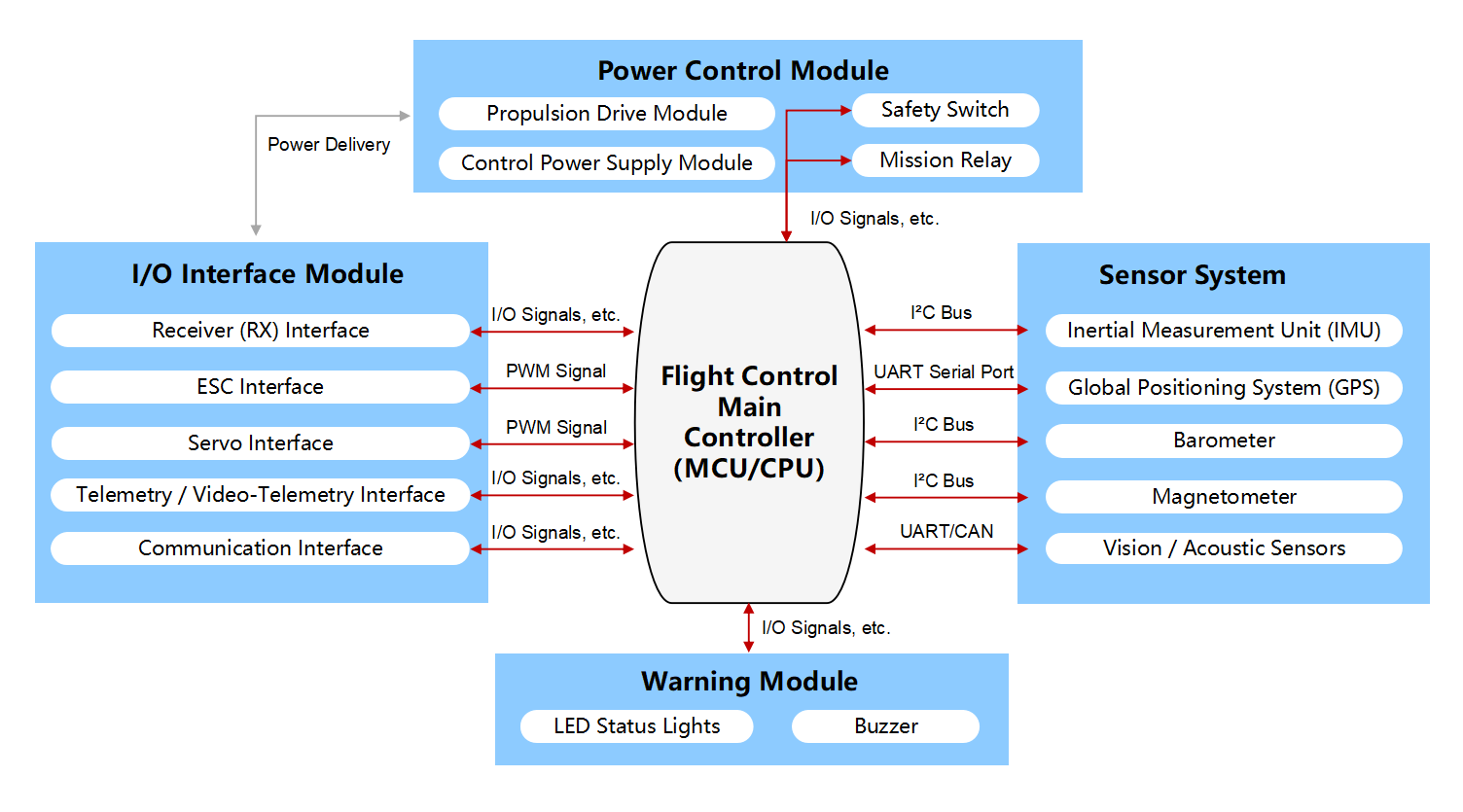

Customer A, a global pioneer in spatial intelligence, produces drone systems, handheld imaging devices and educational robots. Their R&D team needed a compact test rack to validate flight-control PCBA functions: PWM control verification (motor speed&servo angle),Digital I/O checks (telemetry and on/off signals),Individual ESC-branch current measurement.The conventional setup—bench DMMs plus standalone digital-I/Omodules—took too much space and was difficult to integrate.

NGI Solution

To meet the customer’s upfront requirements, NGI proposed its NXI modular-platform solution. A single 3Uchassis integrates high-speed digital I/O,multiplexing and multi-channel current-measurement modules, cutting rack space by >40% and providing unified software control.

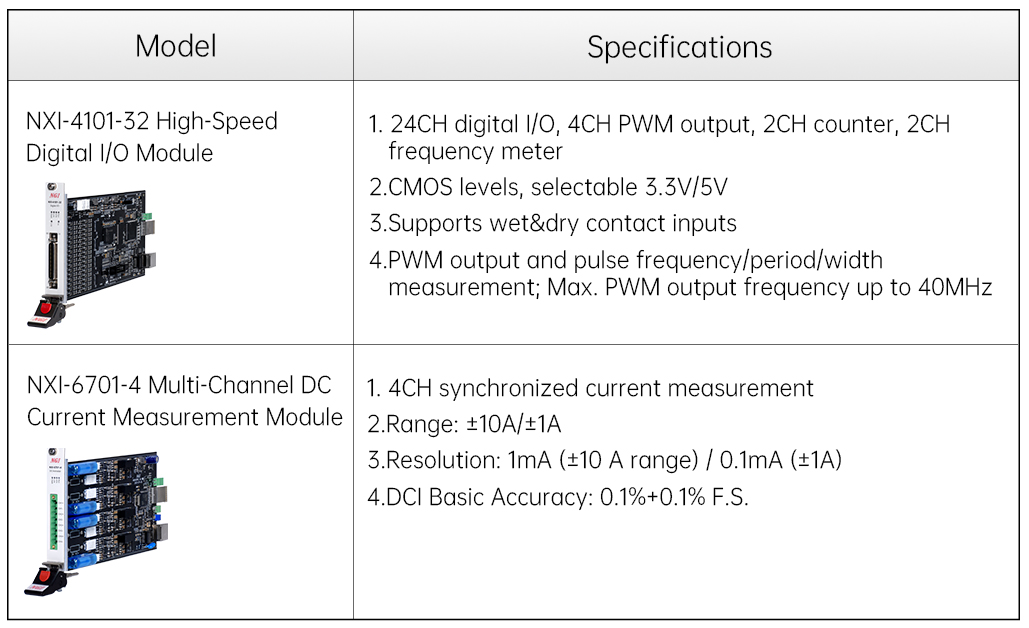

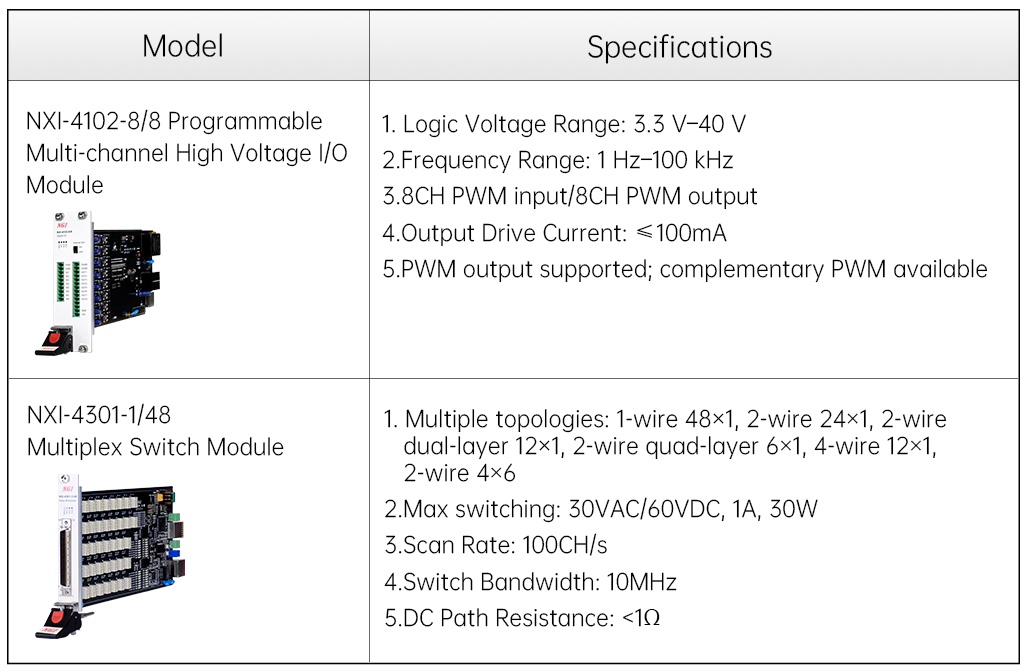

Recommended NGI Products for Flight Control PCBA Functional Testin:

Case 2 – Power-Supply Validation for eVTOL Flight-Control Mainboard

Customer Requirement

Customer B, Asia’s largest flying-car company and a global top-tier eVTOL OEM, is developing smart electric aerial vehicles for personal transport.

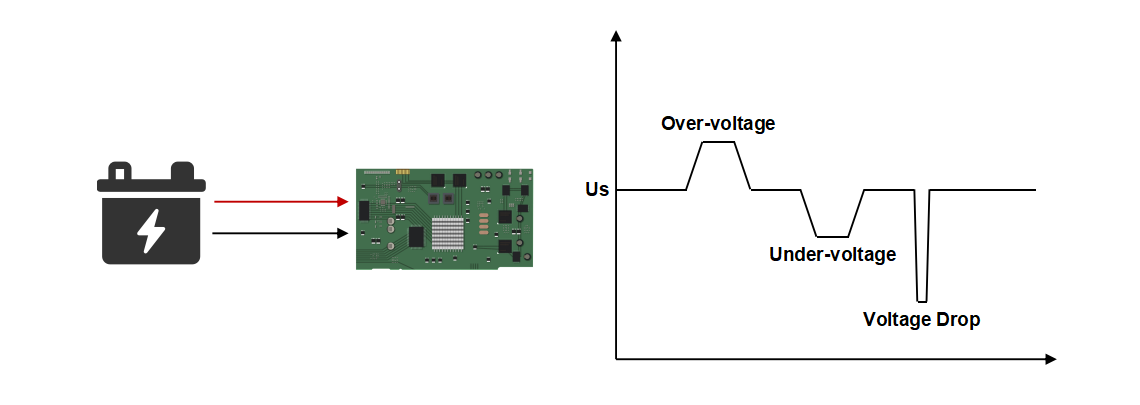

During R&D they need to verify the flight-control mainboard’s behavior under wide-range DC inputs: over-voltage, under-voltage anddrop conditions. The test bench must deliver high accuracy, easy integration and rich sequencing features.

NGI Solution

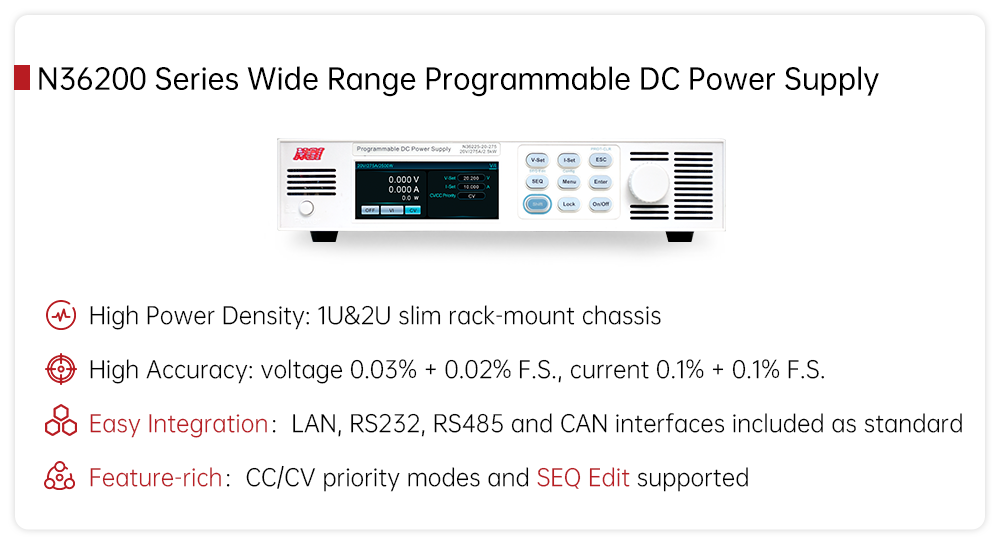

To meet customer requirements, NGI offers the N36200 series of wide-range DC power supplies. Featuring high precision, easy integration, and rich functionality, these products perfectly match client verification and production line testing needs.

Recommended NGI Products for eVTOL Mainboard Power Supply Testing:

Case 3 – High-Efficiency Test of “3-Electric” Systems for Fixed-Wing UAVs

Customer C is China’s top developer of smart fixed-wing UAVs, deployed in emergency rescue, weather services, wide-area patrol and air-cargo transport.

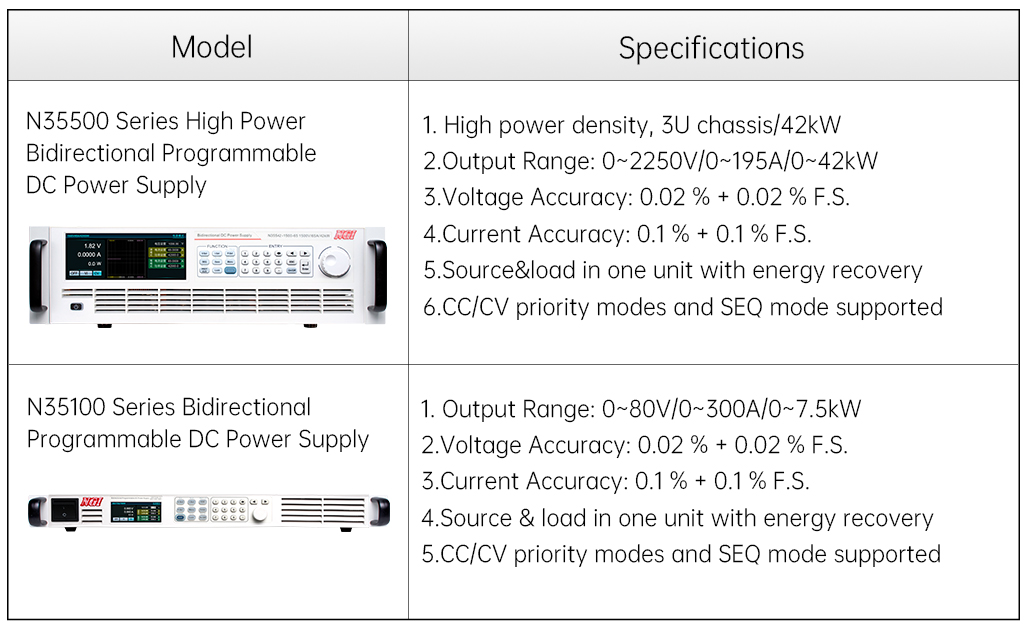

Battery, motor-controller and on-board power units directly determine flight endurance and safety. To meet customer requirements, NGI offers the N35500 and N35100 series of high-performance bidirectional programmable DC power supplies. These units support testing across the full power range from kilowatts to tens of kilowatts, enabling evaluation of products such as UAV motor controllers, batteries, onboard chargers (OBCs), DC/DC converters, and power distribution units (PDUs).

Recommended NGI Products for Drone Electrical Components:

NGI has been deeply involved in the low-altitude economy industry for many years, offering testing products and solutions ranging from drone PCBA level to complete aircraft component level. Our products are widely adopted by top-tier clients across the global industrial chain. Relevant application scenarios are as follows:
