Knowledge About Battery Simulator

October 09,2020
share to:

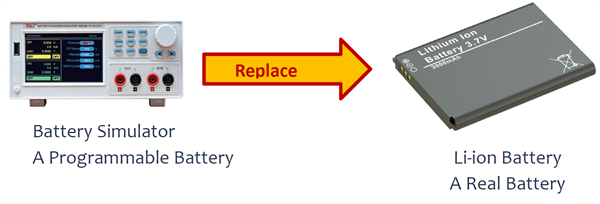

1. Definition
A battery simulator is an electronic equipment that emulates numerous  properties of a real battery. These properties are power, voltage, current,  etc. The battery simulator supplies the required voltage, power, and current to the mobile device in the same manner as an actual battery. In a way, a simulator is a programmable electronic battery.


what's a battery simulator

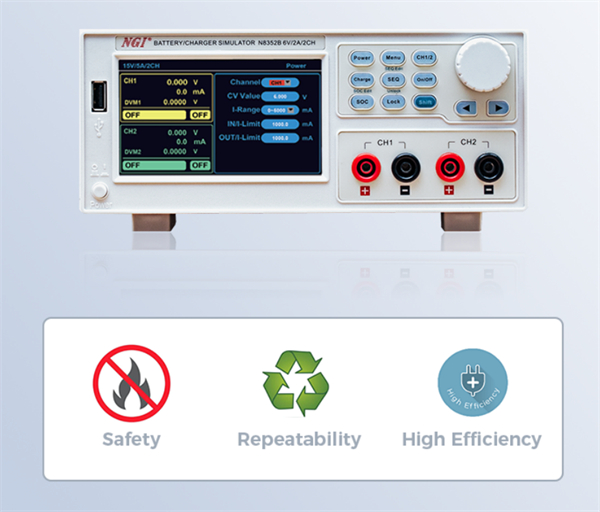

2. Advantages

Safety
The battery contains high energy storage. Under normal conditions, such as temperature, charge rate, and discharge rate, engineers can use the battery safely. However, some unexpected situations may occur during the test. During the design phase, the DUT may not work properly and cause the battery to be overcharged or over-discharged. Moreover, the DUT may malfunction or enter an unexpected state, which may absorb excessive current from the battery, resulting in fire, explosion, chemical leakage and other risks.
The battery simulator includes electronic protection circuits, such as overvoltage and overcurrent protection, which will interrupt the test when a problem occurs during the test.

Repeatability
Generally, by fully discharging the battery and then charging the battery to the desired state of charge, this will accelerate the battery aging and shorten the battery life. Battery performance will decrease over time. Engineers cannot guarantee that aging batteries will be charged to the required state of charge. Therefore, testing with aging batteries may lead to incorrect results.
Compared with testing with real batteries, battery simulators can obtain more consistent and repeatable test results. It eliminates the uncertainty associated with battery aging and can determine the state of charge of the battery.

High Efficiency
Usually, it takes several hours to fully charge a real battery. To improve test efficiency, engineers can use the battery simulator to quickly change the voltage to simulate the battery being charged, instead of waiting for the charger to charge the real battery.


battery emulator function

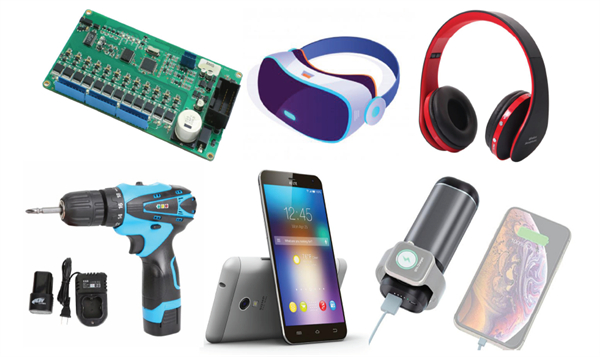

3. Applications

BMS/CMS  Cell simulation
Smart Wearable  Charging and standby test
Bluetooth earphone  Sleep current and shutdown leakage current test
Electric Tool  Motor driver and power loading test
Mobile Phone  Charging and battery simulation


programmable battery emulator application

4. Quick Selection

SeriesChannelsTwo-quadrantCurrentVoltageInterface
N83522Yes1/2/3/5A6/15/20VLAN/RS232
N83588Yes1/2/3/5A5/6/15VLAN/RS232
N8362424No1/3/5A6/15VLAN/RS232
