NGI Automotive Waveform Software Officially Released!

The NGI Automotive Waveform Simulation Software, developed by NGI Measurement & Control, is a specialized tool designed for the development and testing of automotive electronic systems and components. It works in conjunction with NGI DC power supplies to simulate voltage fluctuation waveforms during vehicle startup, charging, discharging, and other critical processes, using internally generated electrical signals that comply with automotive testing standards.

Precise Simulation · Full Standard Compliance

The Automotive Waveform Simulation Software, paired with NGI DC power supplies, covers automotive regulatory test waveforms such as:

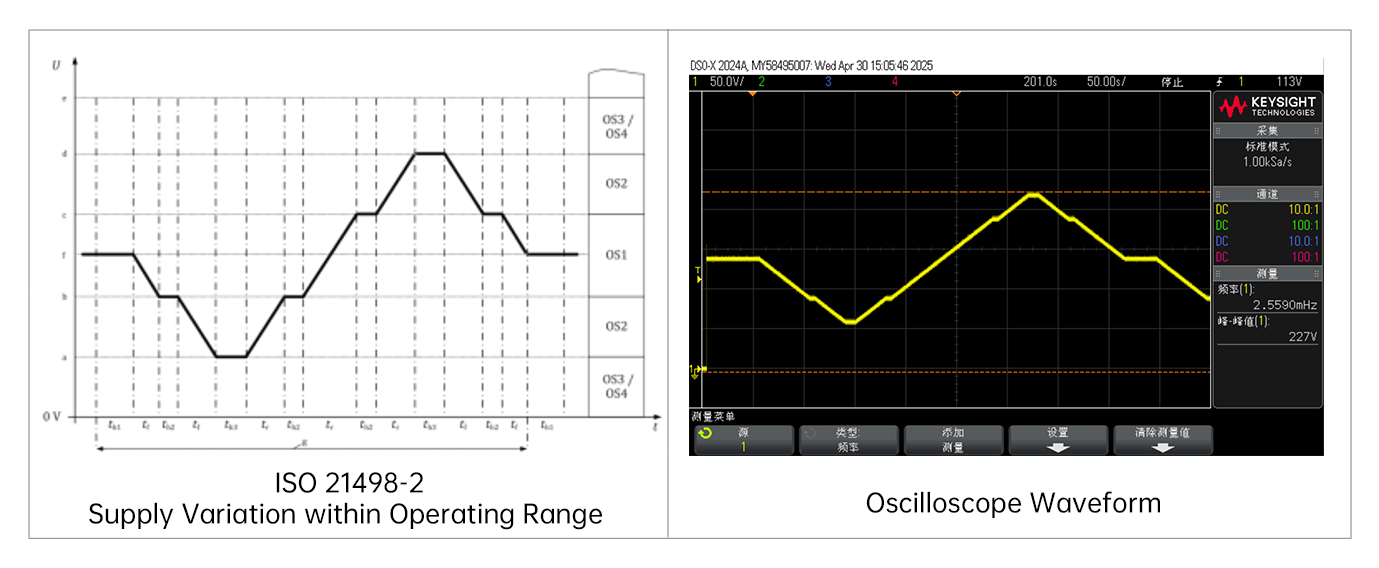

• ISO 21498-2

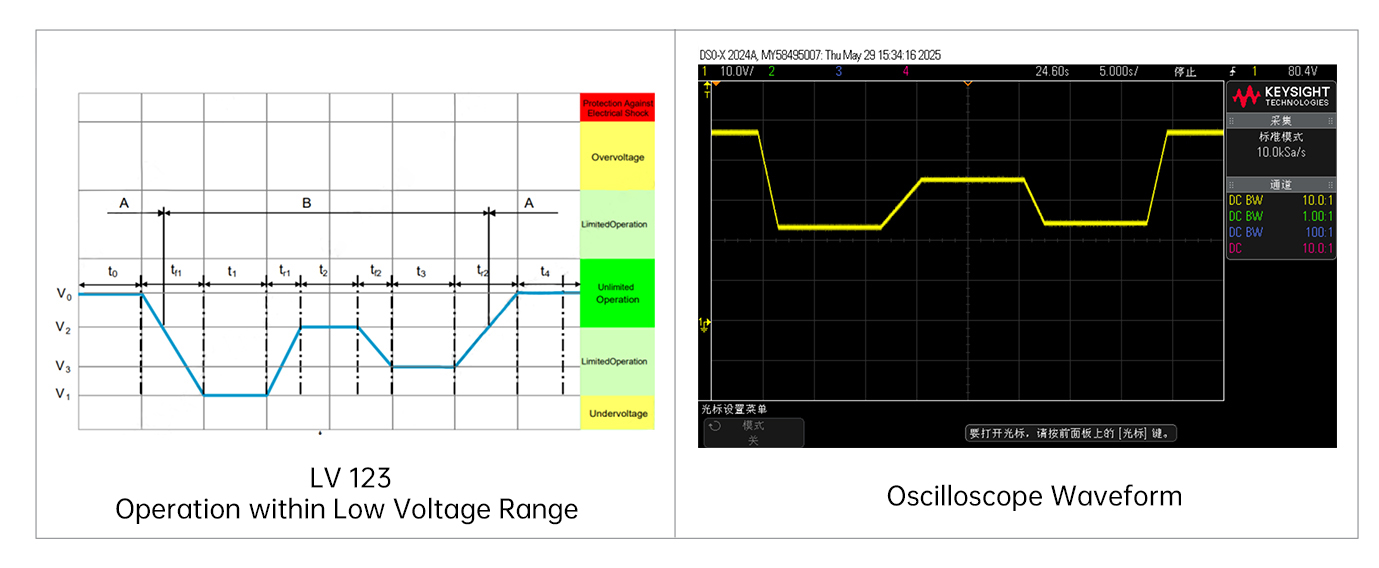

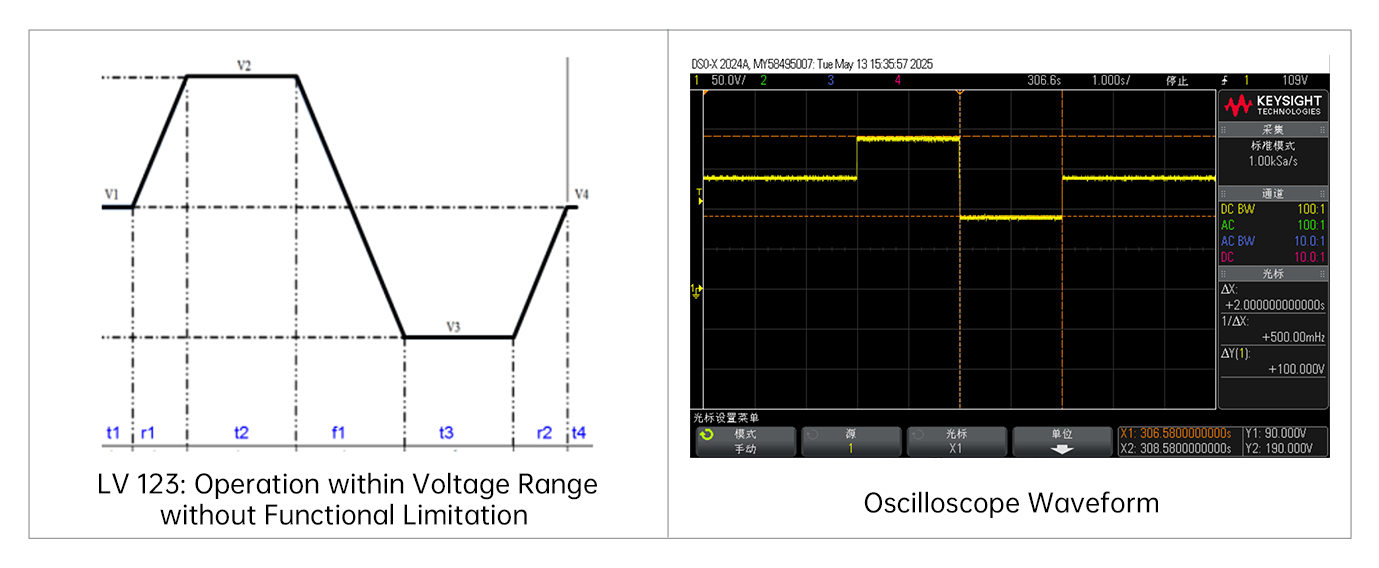

• LV 123

• LV 148

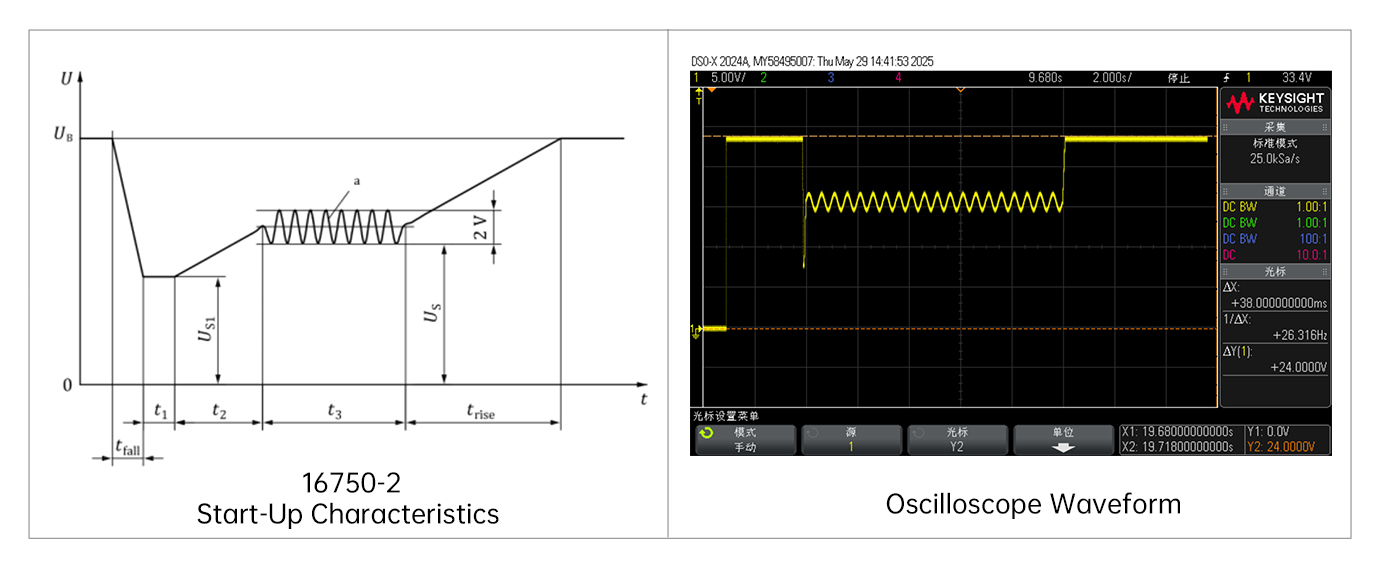

• ISO 16750-2

It accurately replicates typical operating conditions, including:

• Voltage drop

• Slowdrop andrise

• Jump start

This ensures comprehensive testing for automotive ECUs, sensors, infotainment systems, and other electronic components.

Simplified Operation · Rapid Testing

When used with NGI DC power supplies, the software supports one-click invocation of standard automotive waveform templates (via PC or embedded control), enabling quick validation of product immunity to interference and significantly reducing R&D cycles.

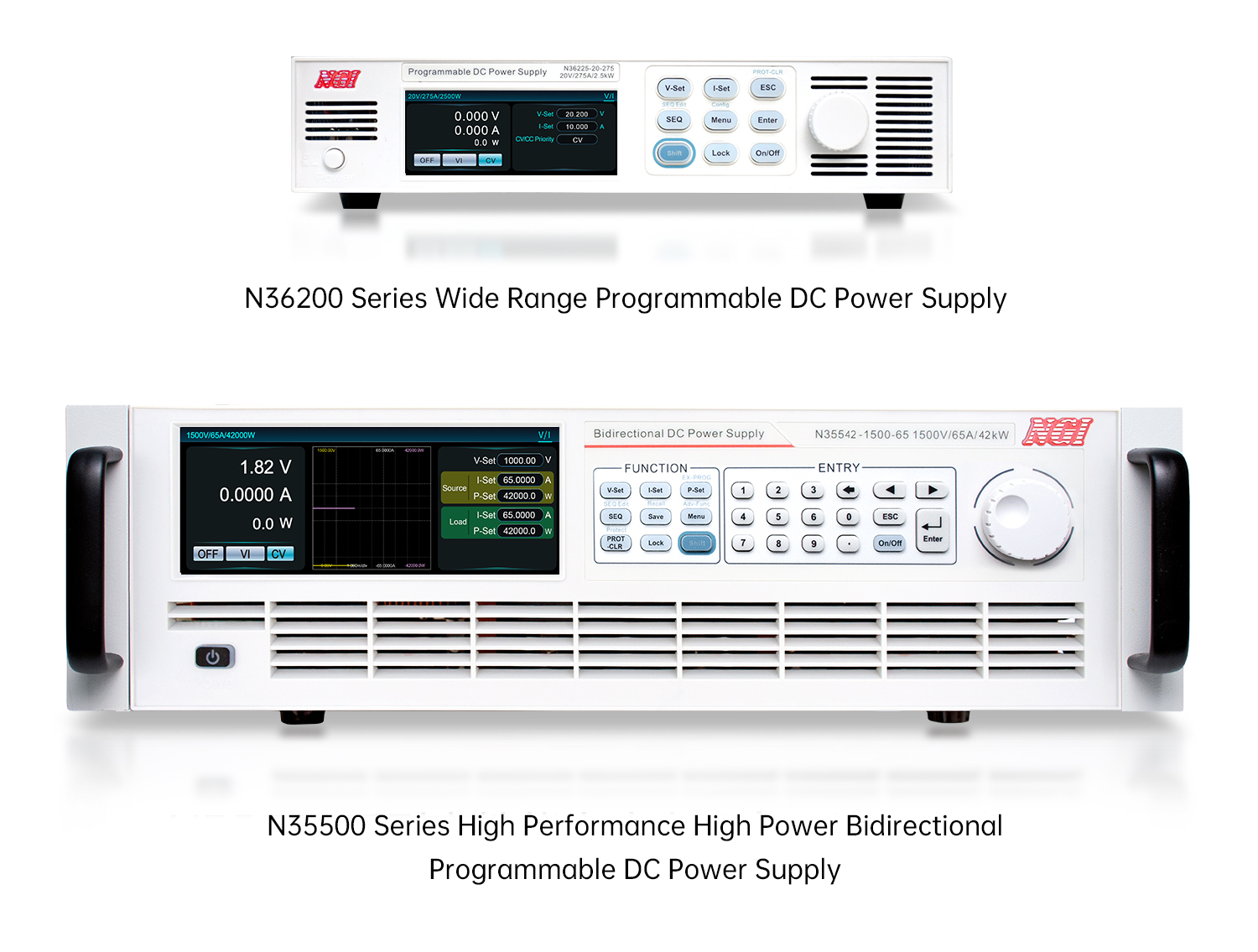

Example: The N35542-1500-65 model supports this functionality.

Note 1: NGI product series compatible with automotive waveform simulation:

N35500

N35100

N36200

Note 2: Different voltage specifications may have variations in built-in automotive waveforms. Please select and configure based on the specific model and applicable automotive waveform testing standards.
