The Next Trillion-Dollar Track: System Architecture and Key Testing of Humanoid Robots

A Trillion-Dollar Blue Ocean Emerges — Humanoid Robots Lead the Next Tech Wave

As a deep integration of artificial intelligence and advanced manufacturing, humanoid robots are spearheading a new technological revolution and becoming a strategic focal point in global competition. Elon Musk once predicted: “Future demand for humanoid robots could reach 10–20 billion units, far exceeding the global vehicle population.” According to third-party market research, the global humanoid robot market is expected to reach USD 75 billion by 2035, with the potential to exceed USD 1 trillion by 2050.

Humanoid robots must coordinate over 40 joints to perform complex tasks such as walking, grasping, and balancing, placing extremely high demands on their power and control systems. Key industry challenges include limited battery endurance (typically only 2–4 hours) and instantaneous joint motor power peaks reaching several kilowatts. Maintaining continuous and stable battery output, precise motor response, and real-time sensor coordination under dynamic operating conditions remains a major bottleneck for humanoid robots transitioning from laboratories to large-scale commercialization.

In-Depth Analysis: Humanoid Robot Architecture and Testing Challenges

The key components of humanoid robots include joint actuators (motors, gear reducers, sensors, and drives), battery and energy management systems, various types of sensors, and motion control modules. Performance requirements far exceed those of traditional industrial robots, demanding not only high power density joint drives but also highly integrated perception and control systems—posing entirely new challenges to testing and measurement.

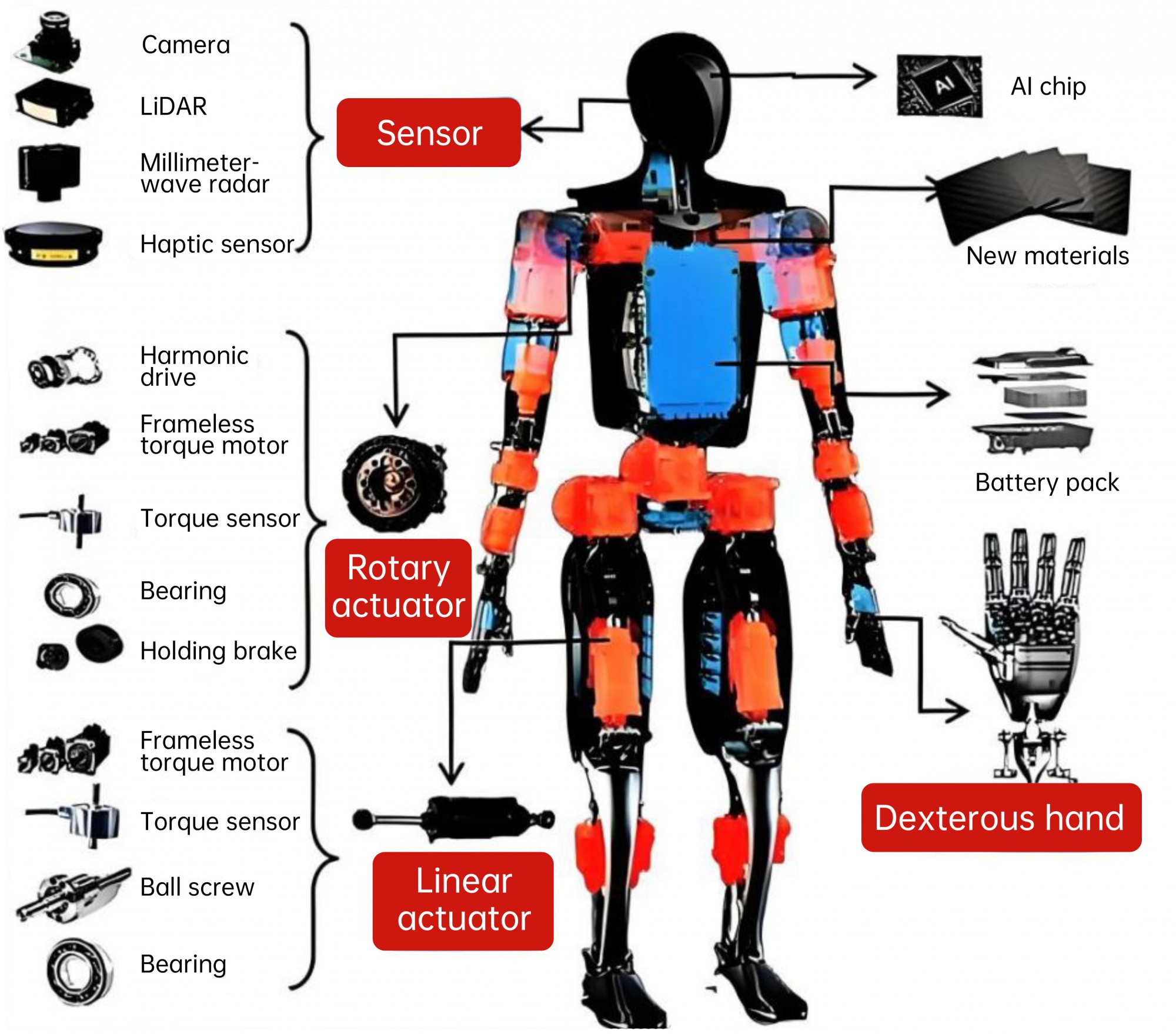

To ensure motion accuracy, stability, and safety, core hardware must undergo rigorous validation. For example, China’s national standard GB/T 43200-2023 — Performance and Test Methods for Integrated Robot Joints defines performance indicators and test methodologies for joint actuators. A typical humanoid robot hardware architecture is shown below:

Joint Actuators: Motors

Joint actuators serve as the “muscles and joints” of humanoid robots, enabling complex movements. Core components include motors, reducers, encoders, sensors, and servo drives.

For motors, key test items include:

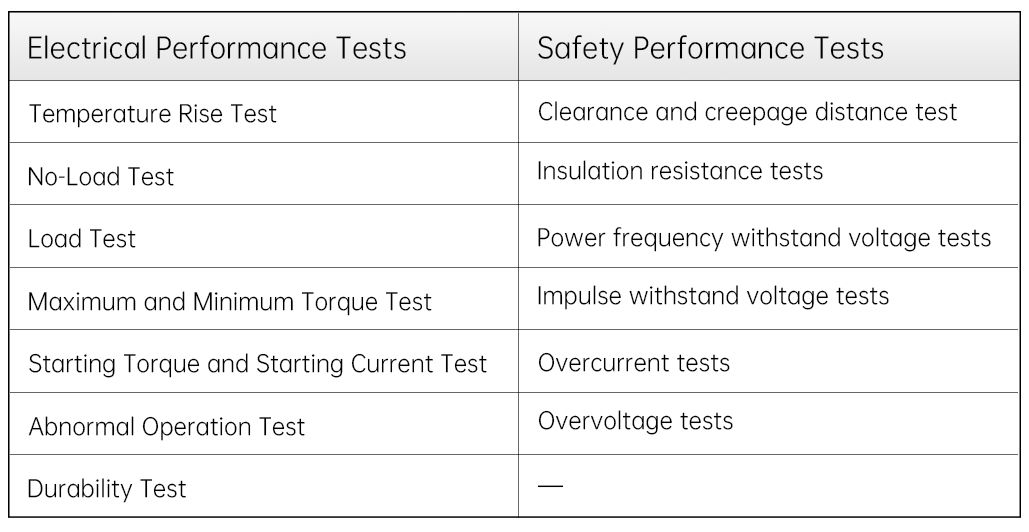

Humanoid robot motors vary widely in power ratings depending on application scenarios. Typical specifications include:

• Small joints (fingers/wrists): 10–50W (DC servo motors)

• Medium joints (elbows/neck): 50–200W (frameless torque motors)

• High-load joints (legs/waist): 20–800W (high-torque harmonic-drive motors)

• Industrial-grade high-dynamic joints: Up to 1–3kW (hydraulic or direct-drive motors)




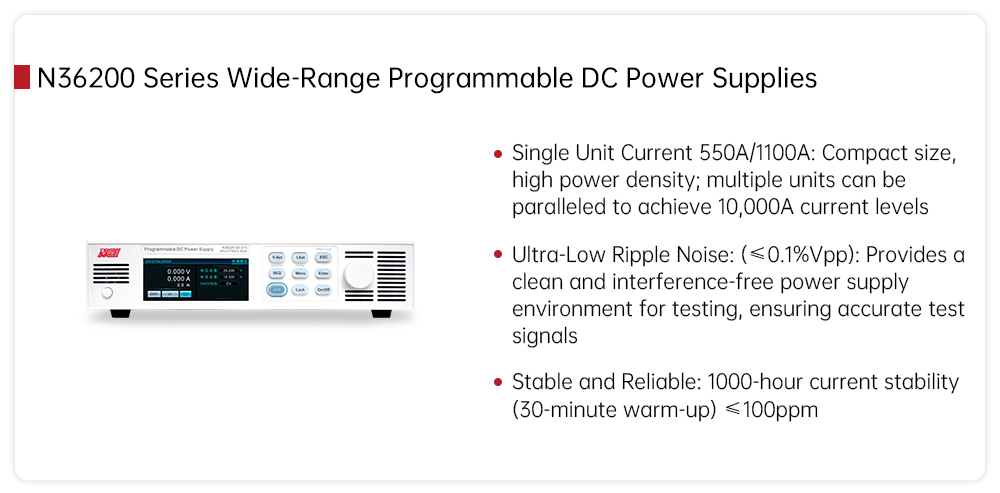

NGI Testing Solutions

Battery pack and battery management system (BMS)

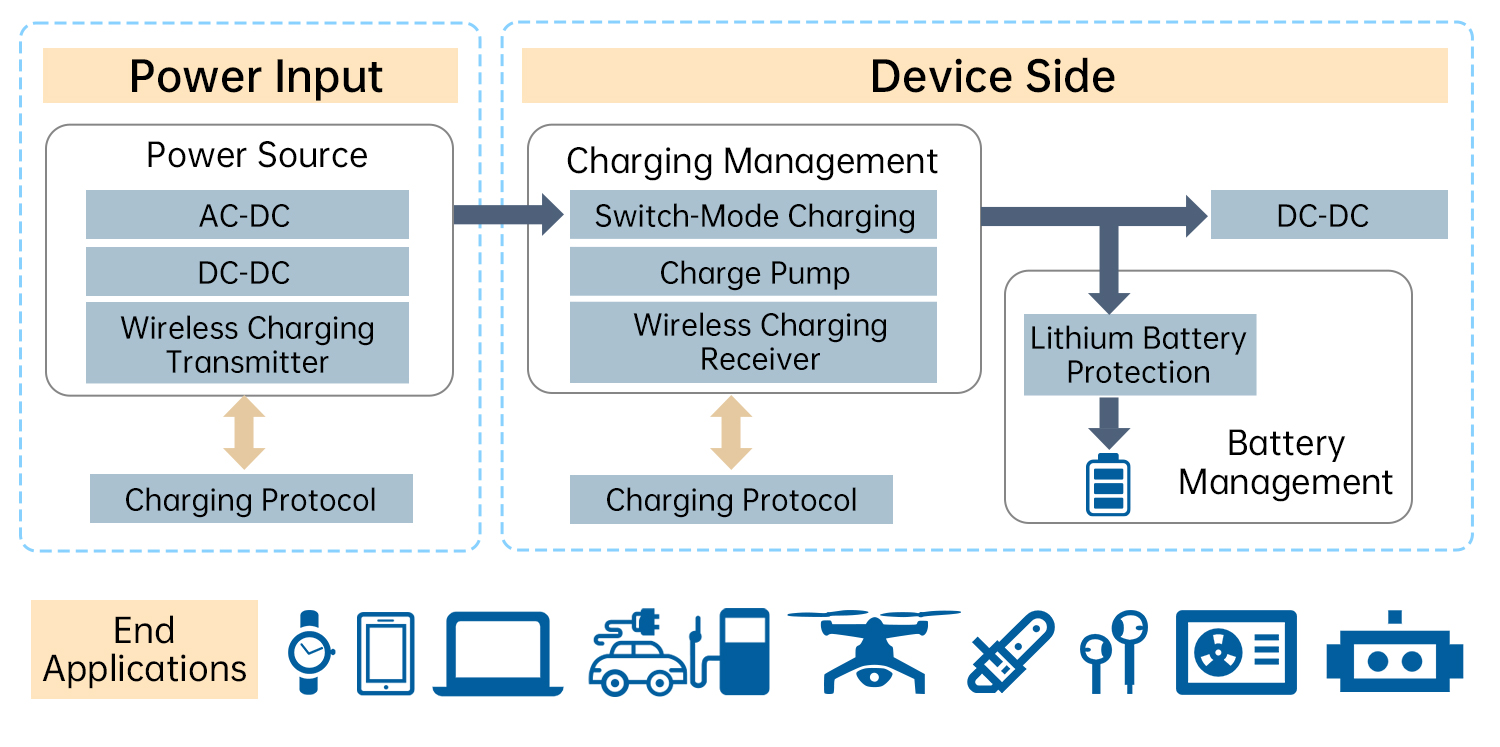

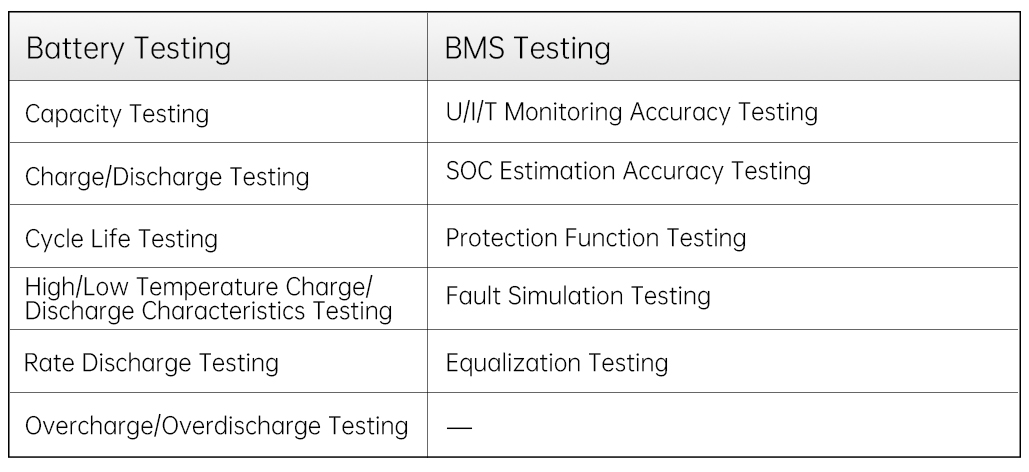

The battery and Battery Management System (BMS) serve as the robot’s “heart and circulatory system,” delivering stable energy while continuously monitoring cell states to ensure system safety. Typical humanoid robot battery pack voltages range from 48V to 800V, sharing technological similarities with electric vehicle systems. Key test items include:

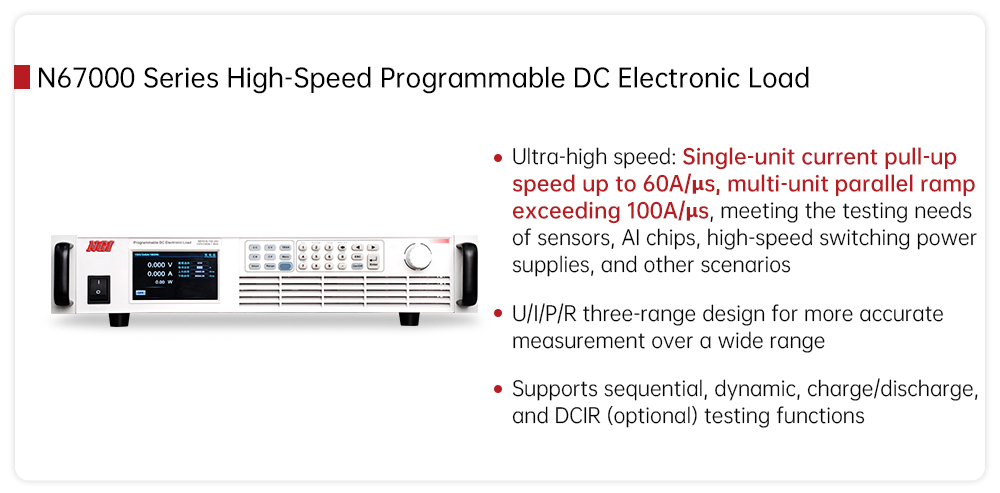

NGI Testing Solutions

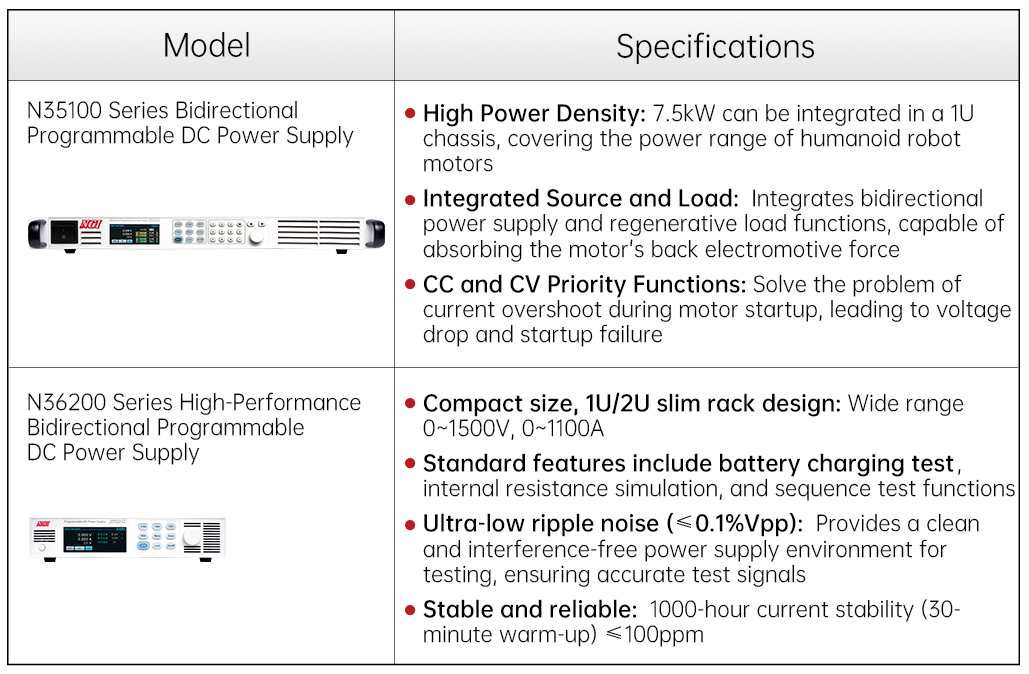

Humanoid robot battery system testing faces challenges such as highly dynamic load profiles, multi-operating-condition simulation, and safety boundary verification. NGI’s high-performance bidirectional DC power supplies and battery simulators can accurately emulate various battery states, meeting the testing requirements of BMS, power modules, and battery systems across multiple scenarios.

Sensor Testing Systems

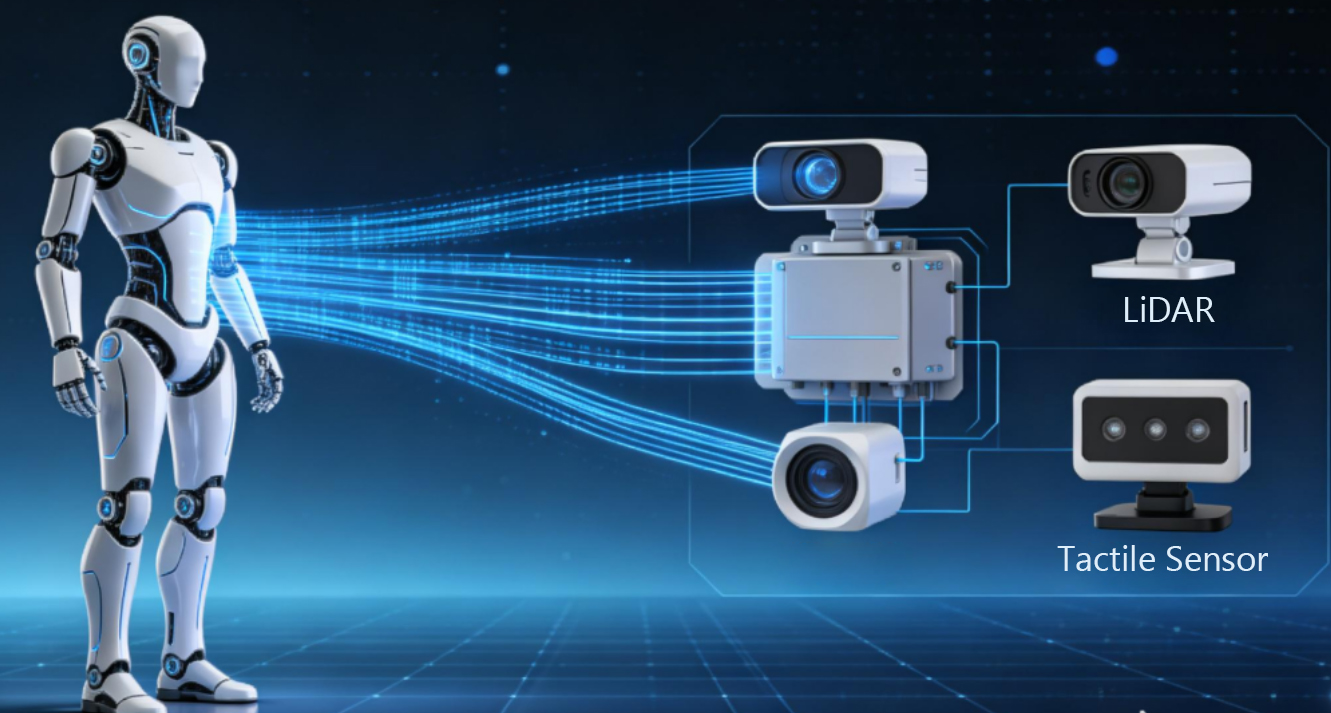

Sensor testing is complex and diverse, including:

• High-speed dynamic stability testing (verifying response under rapidly changing environments)

• Multi-sensor synchronization testing (ensuring time alignment and data consistency)

• Extreme environment adaptability testing (validating reliability under temperature, humidity, vibration, and other harsh conditions)

All these tests rely on high-precision instruments capable of simulating real and extreme operating conditions while ensuring safety and result repeatability.

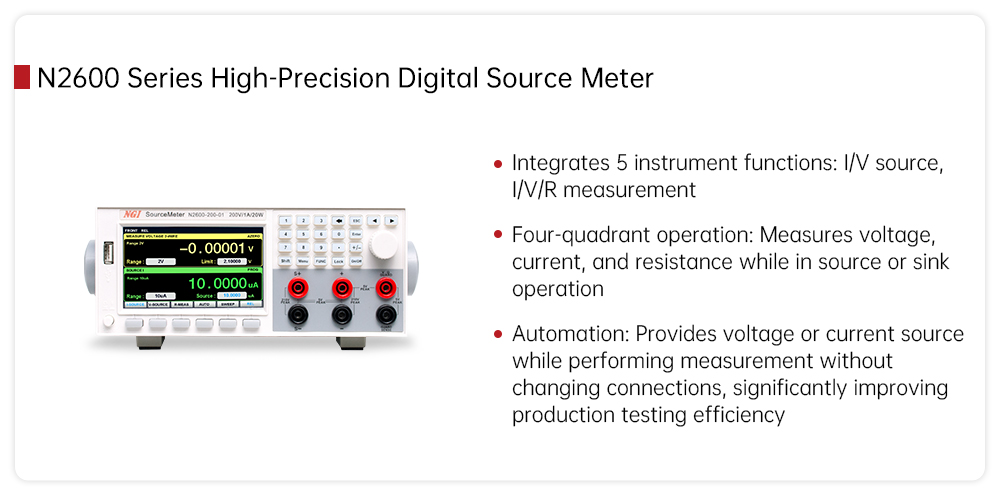

NGI Testing Solutions

Motion control module

The performance of motion control modules directly determines motion coordination and smoothness. Key test items include:

• PWM control testing (for motor speed regulation)

• I/O signal validation (data communication and switching signals)

• Current measurement and monitoring

Modular instruments and card-based test systems are essential tools for such applications, supporting control algorithm verification, signal integrity analysis, and real-time performance evaluation.

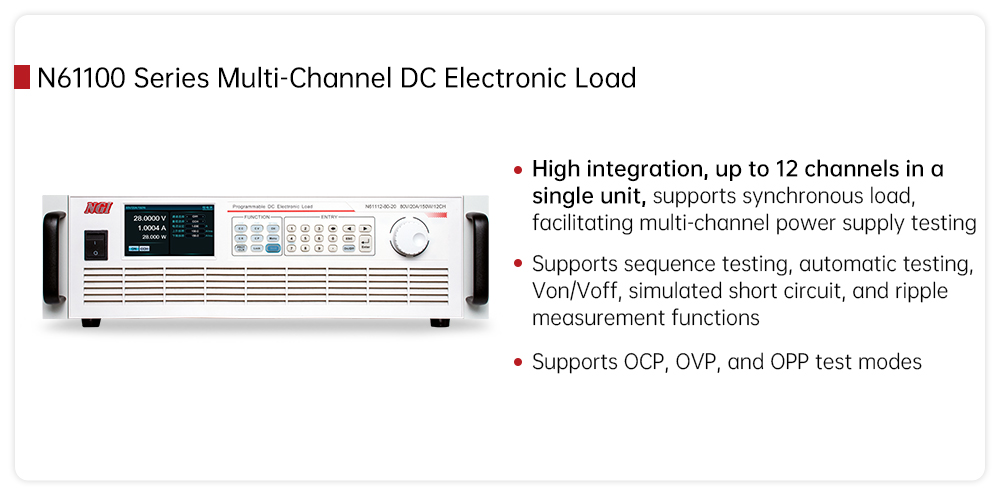

NGI Testing Solutions

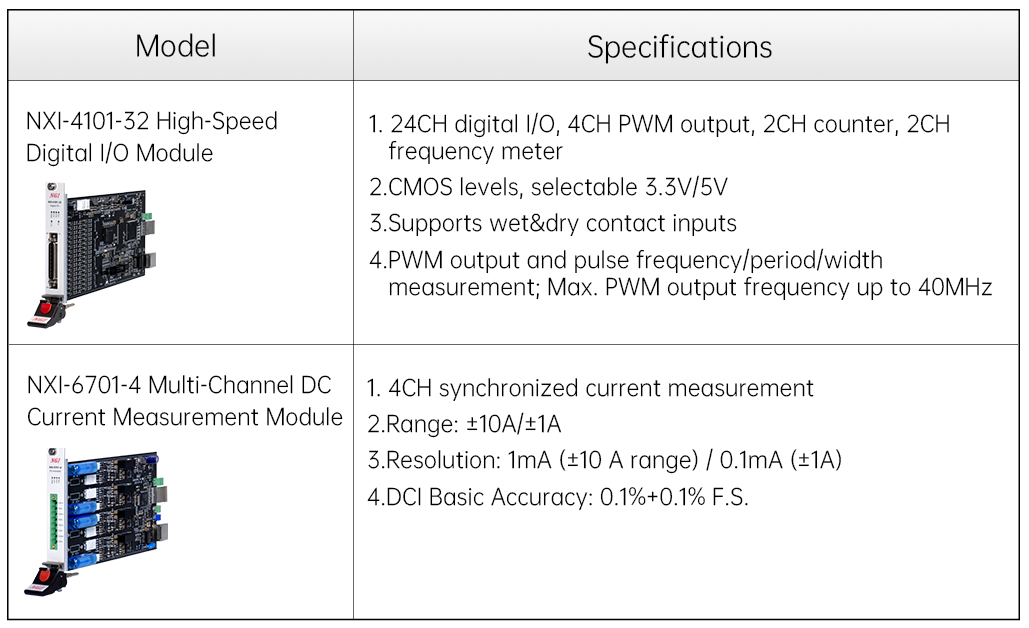

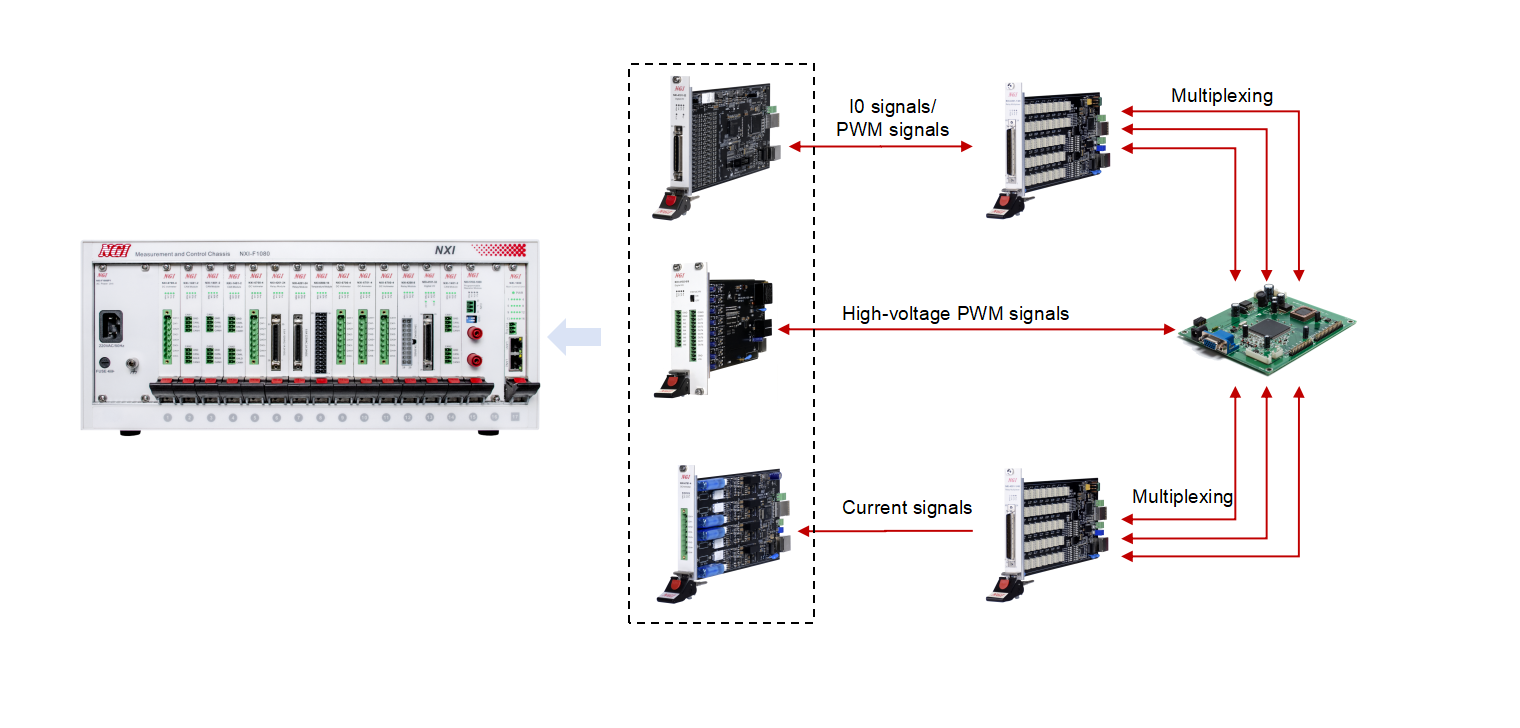

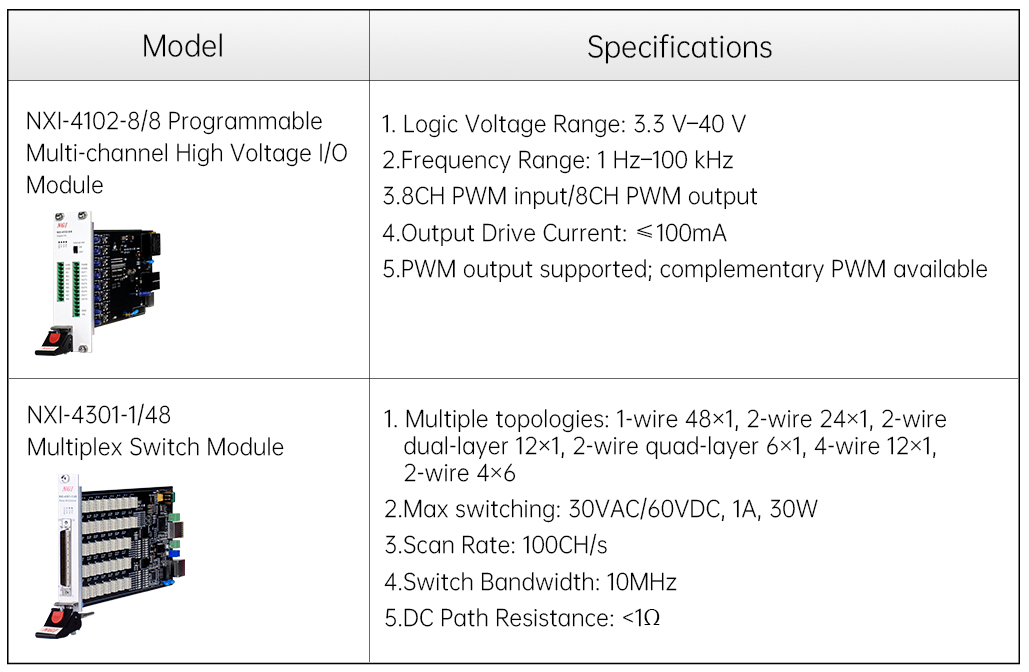

NGI provides the NXI Series modular instruments, where a single 3U chassis supports full-featured test cards for high-speed digital I/O, multiplexing, and multi-channel current measurement, enabling easy system integration and highly efficient automated testing.
