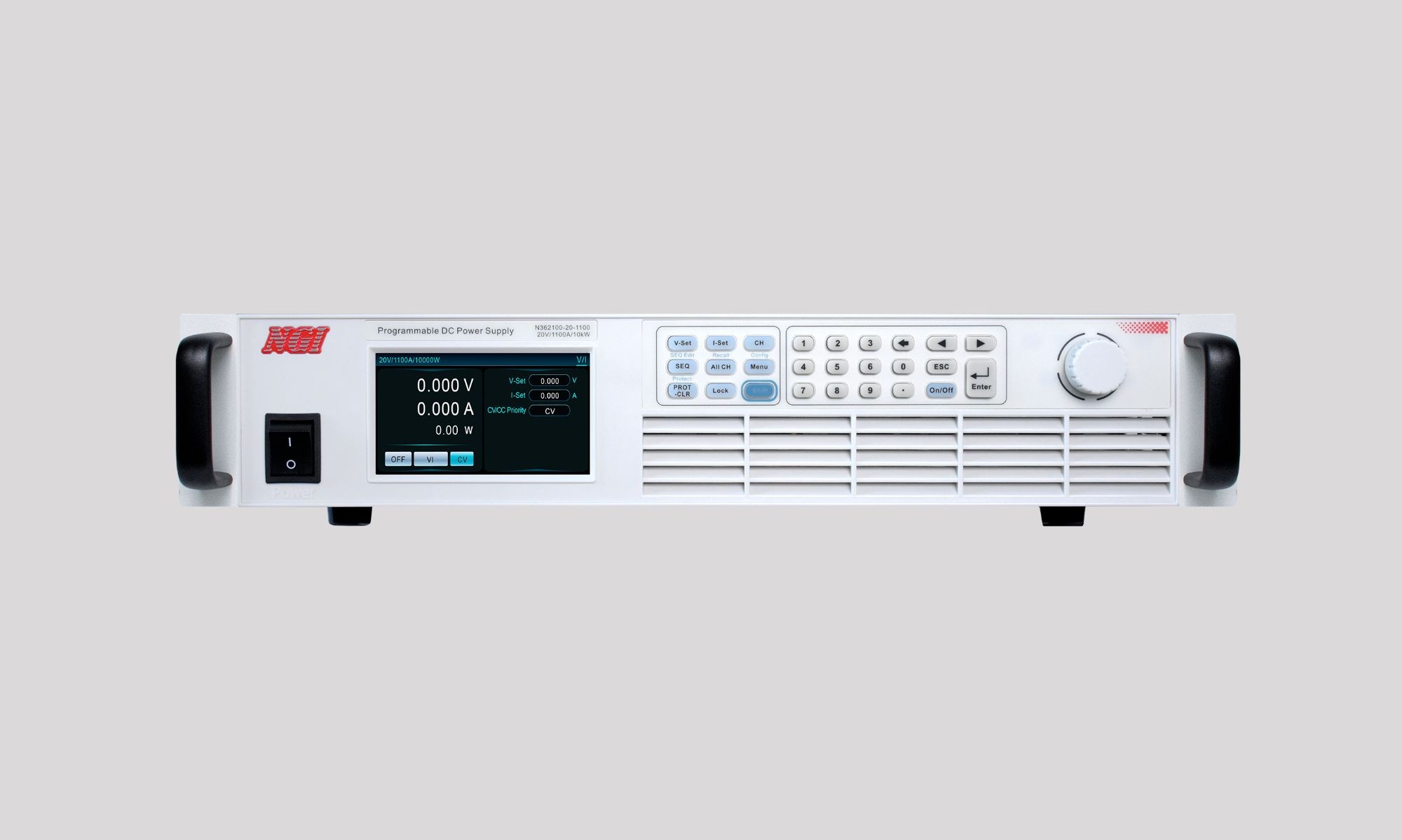

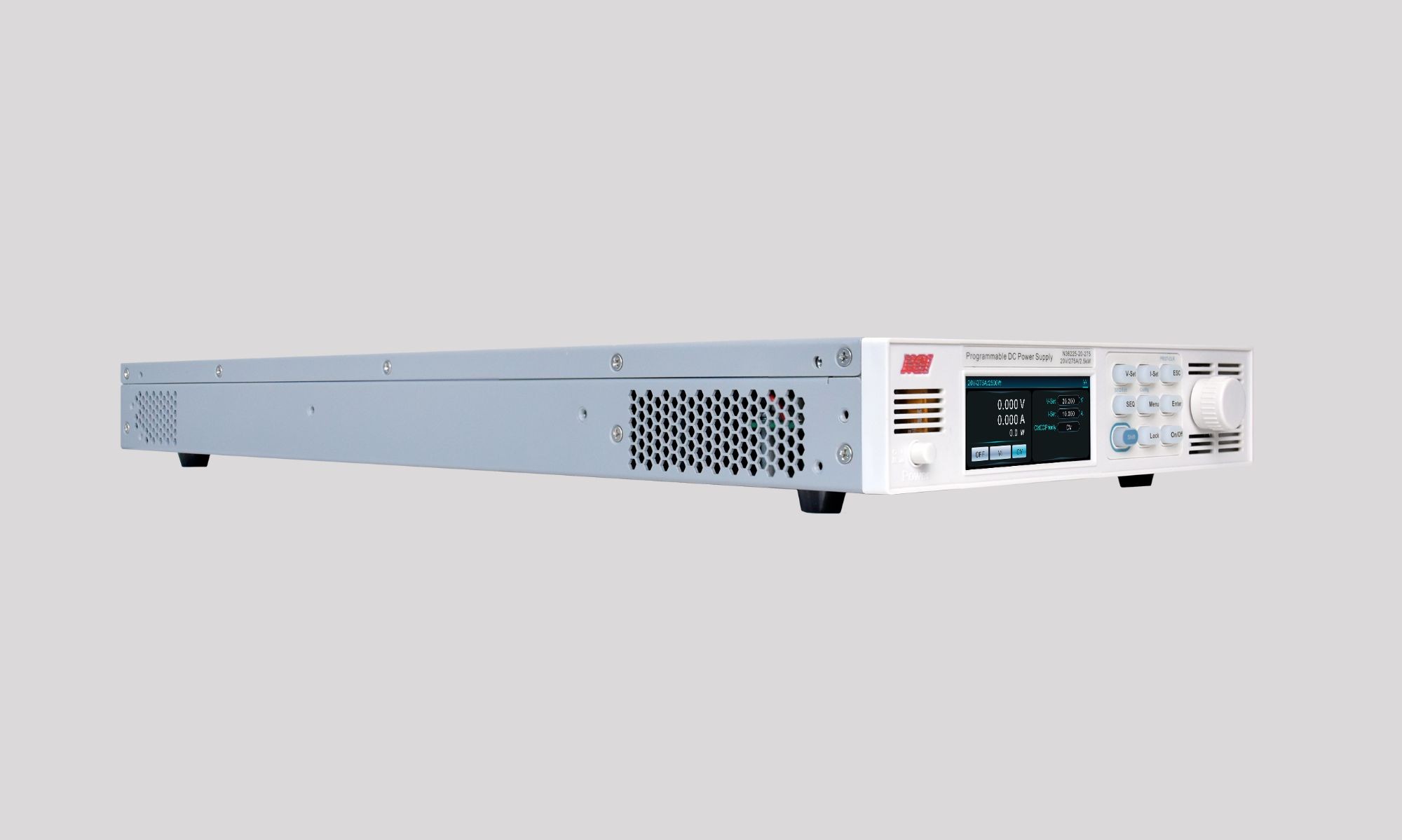

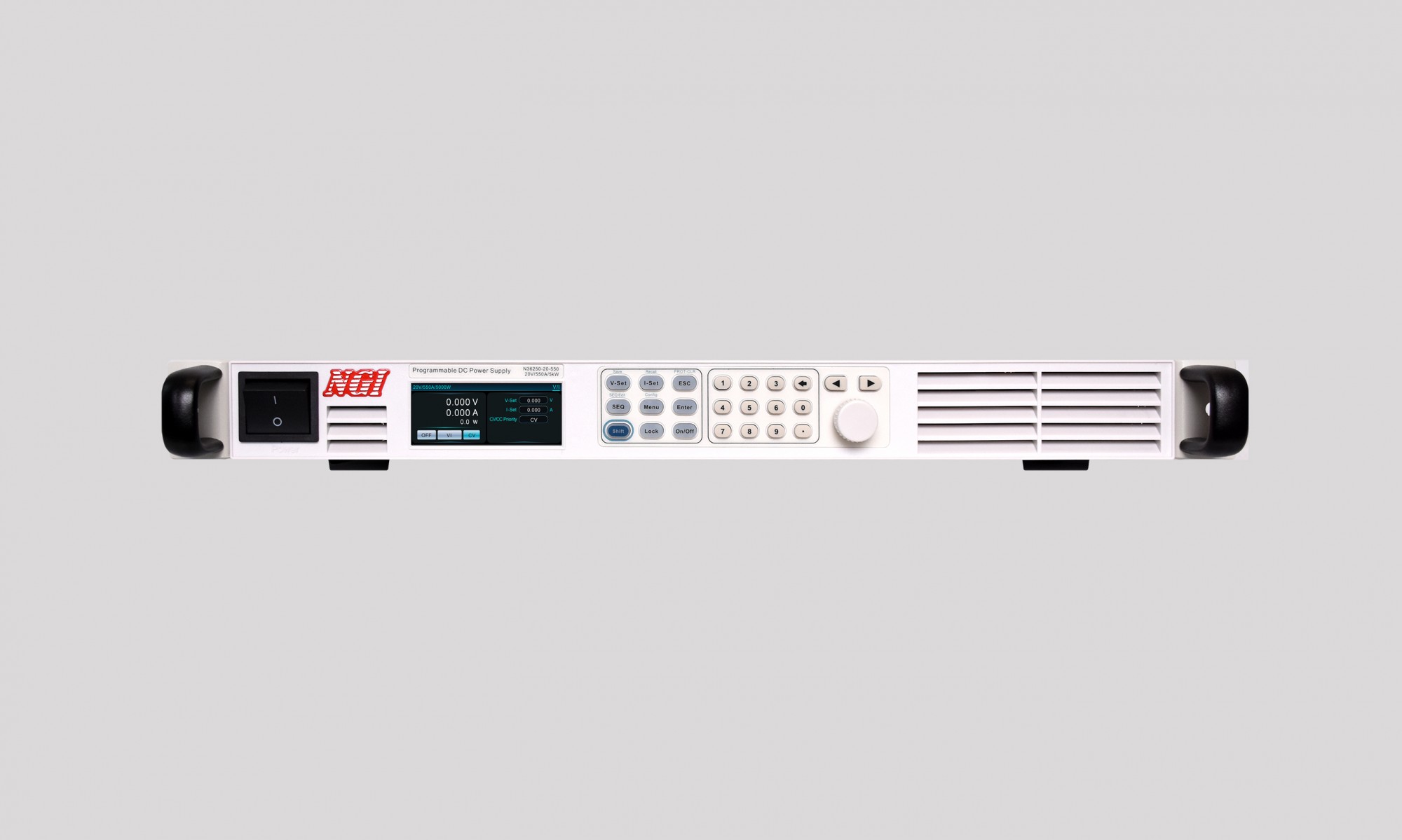

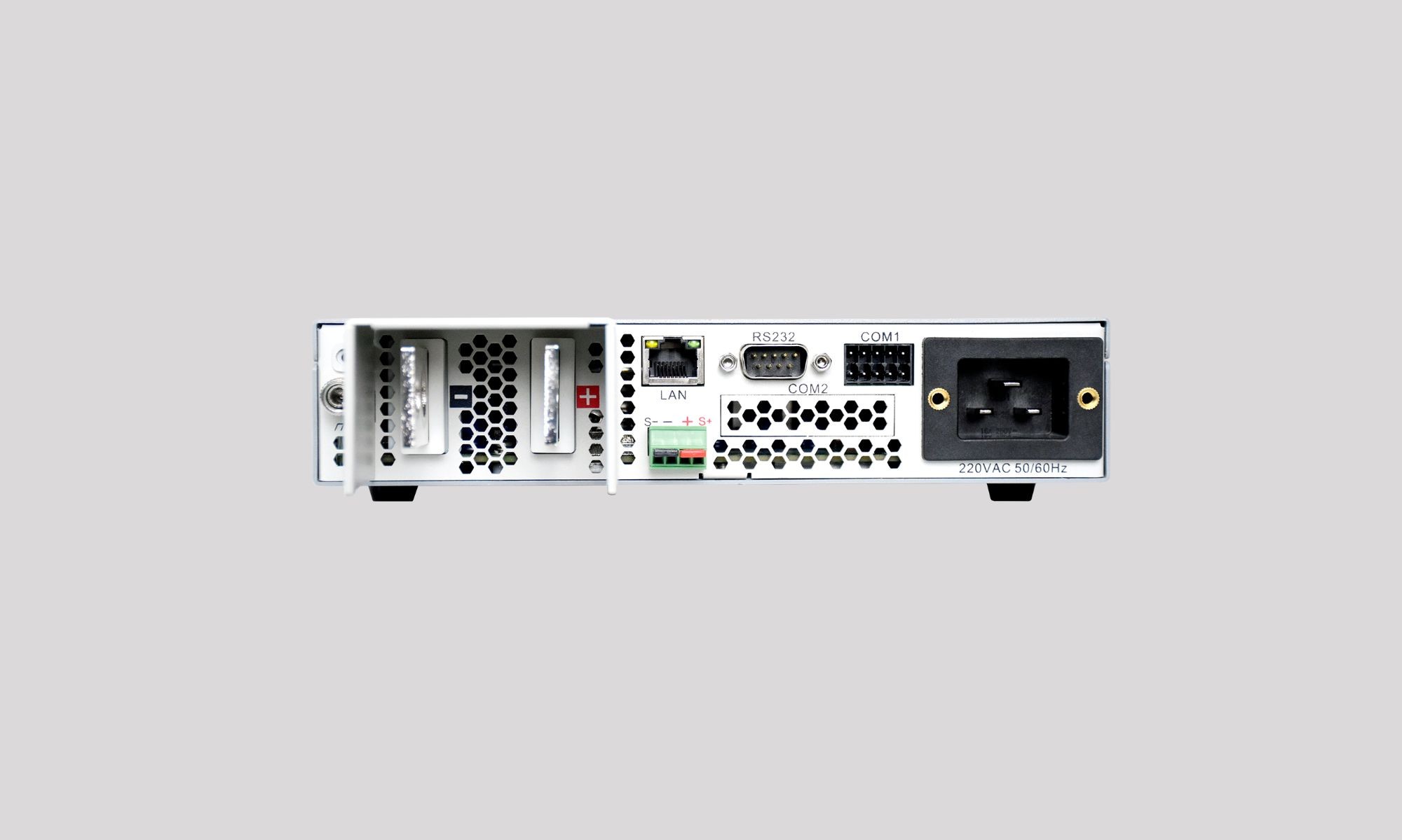

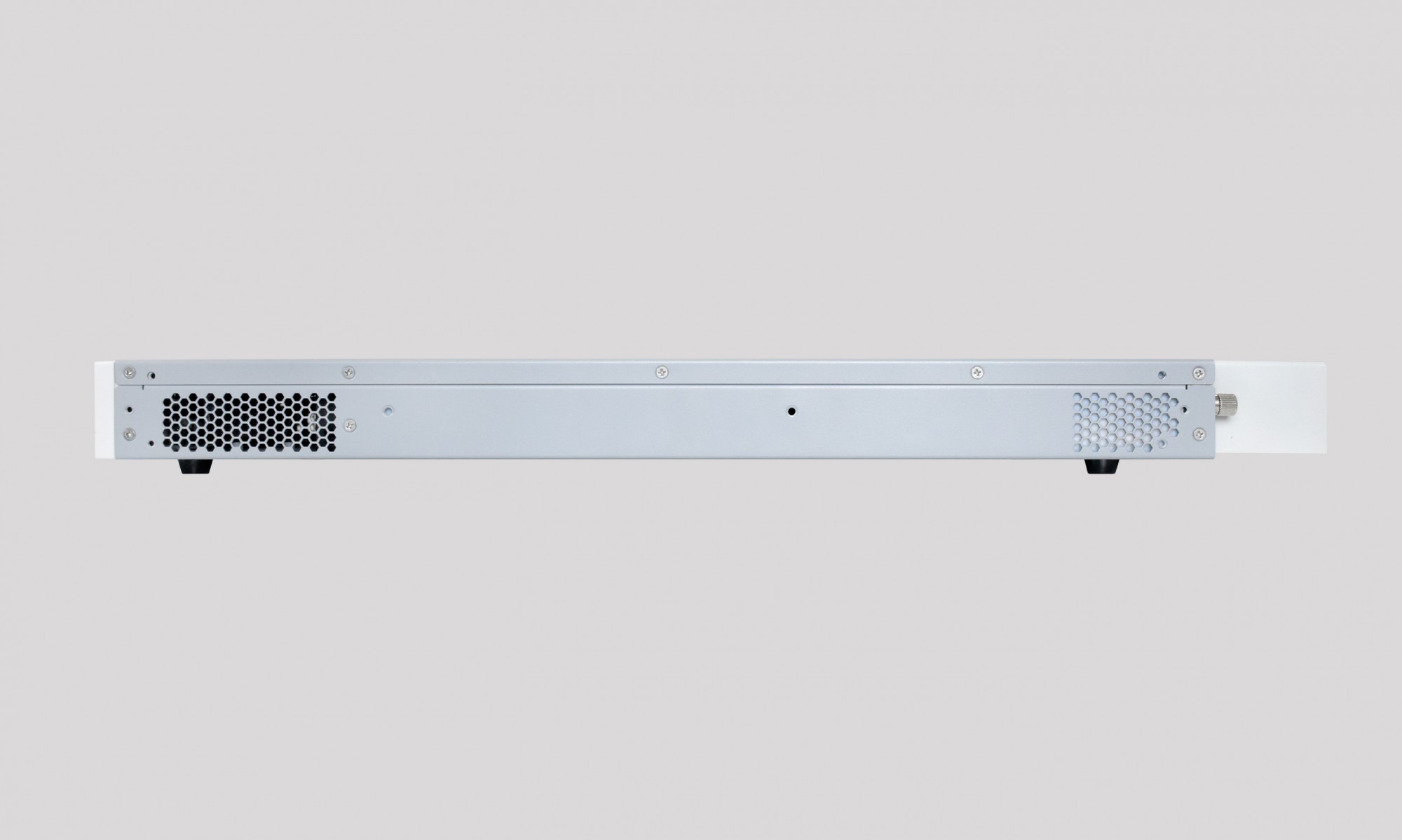

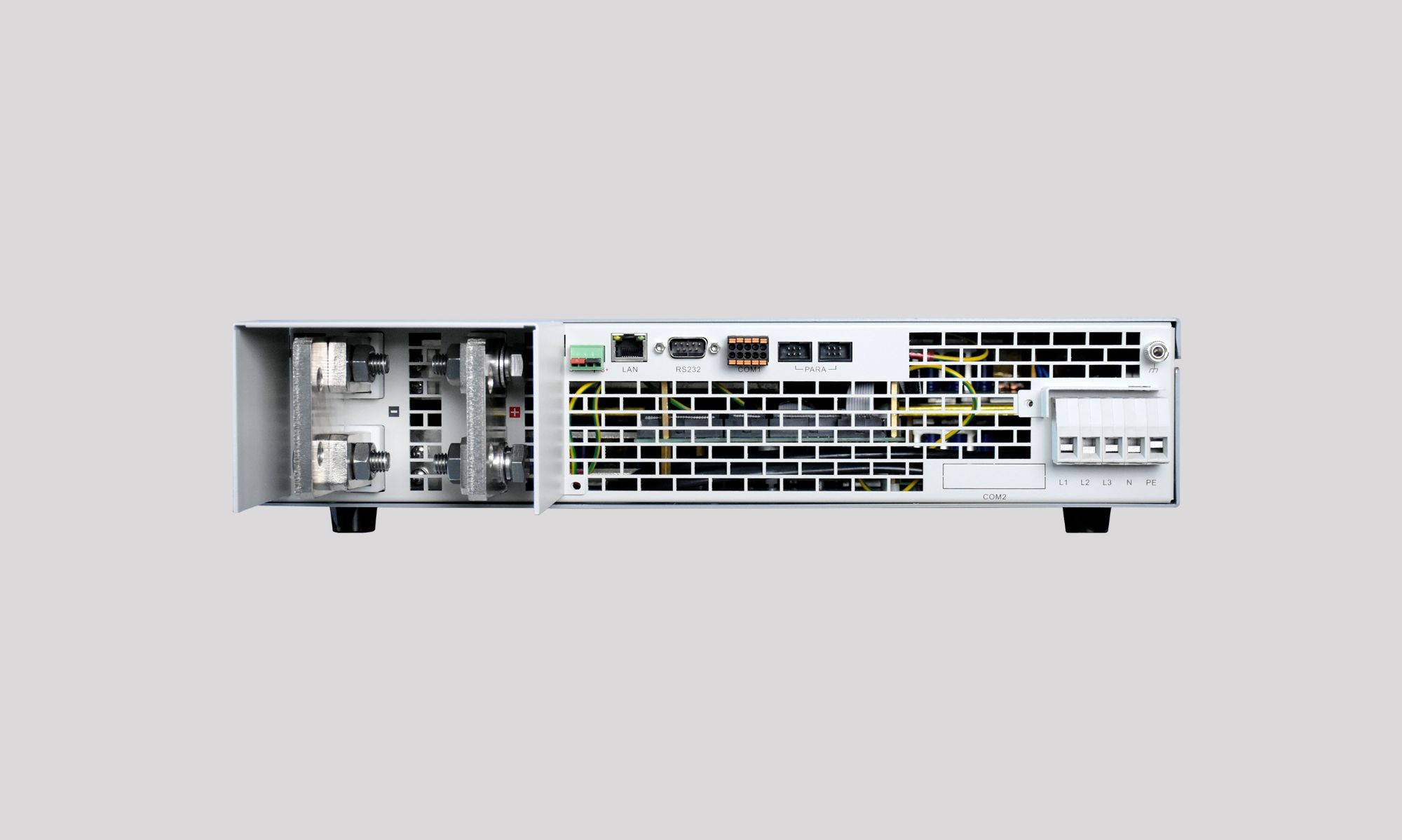

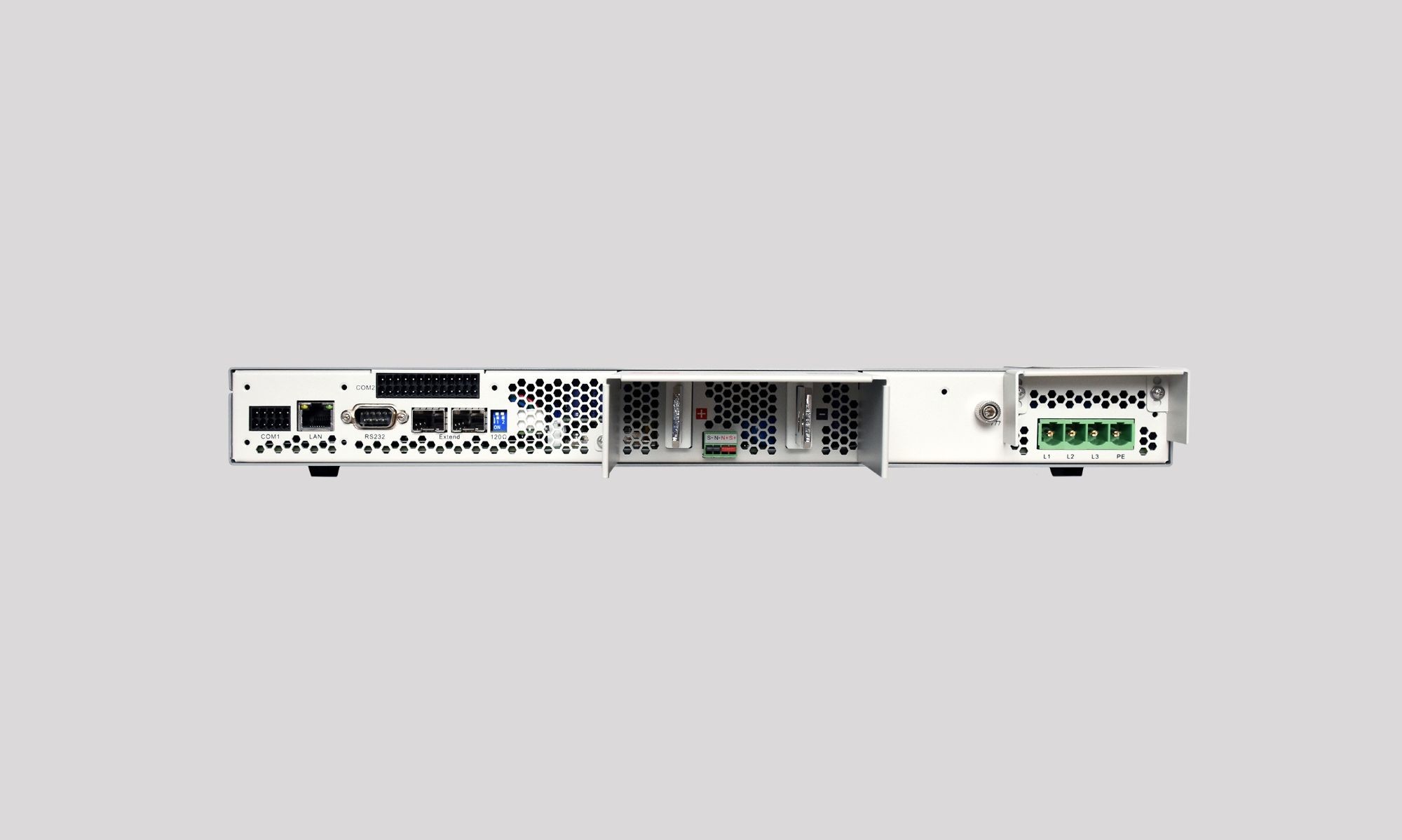

N36200 Programmable DC Power Supply(500W~2500W)
N36200 series is a wide range programmable DC power supply with rackmount design, high performance, high power density, integrating 5000W in 1U height and 19-inch width chassis, up to 10kW in 2U width chassis, covering a wide range of test applications of the DUT. The design of N36200 brings comfortable experience with space-saving in both desktop use and integrated system. N36200 series supports fast dynamic response, high accuracy output, multi test functions, to meet the needs of different application scenarios.
Main Features
●Ultra compact size, high power density, integrating 10kW in 2U height and 19 inch width chassis
●Voltage accuracy: 0.03%+0.02%F.S.
●Wide range of output, one can be used as several
●Adjustable voltage/current slew rate for different requirements
●CC&CV priority function, suitable for all types of DUT
●Large LCD screen to display test data clearly
●Support SEQ test, battery charging test, internal resistance simulation, etc.
●Support Modbus-RTU/SCPI/CANopen communication protocol
●Support car waveform simulation test
●Fast dynamic response time,voltage rise&fall time ≤10ms
●Current accuracy: 0.1%+0.1%F.S.
●19 inch standard size, standalone or integration available
●Support LAN/RS232/RS485/CAN communication control
●External analog programming control (optional)
Application Fields
●Electronic Equipment R&D and Validation, Production Testing
●ATE (Automatic Test Equipment) Systems
●Automotive Electronics
●Aerospace and Defense Electronics
●DC/DC Power Supplies
●Semiconductor Power Devices
●Wire Harness Connectors
●Robotics
●Hydrogen Energy
●Superconductivity
Functions & Advantages
Ultra compact size and high power density to save cost and space
N36200 series DC power supply adopts systematic heat dissipation design, with optimisation of device selection, main circuit topology, system heat dissipation, integrating 2500W in 1U height and half 19-inch width chassis. With wide range of output, its voltage up to 20V, current up to 275 A. N36200 series is designed with small size and high power density to meet multiple test scenarios, to save the purchasing cost and occupied space.
Low output ripple noise

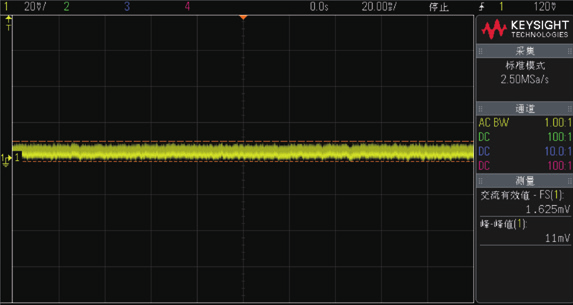

Ripple is a critical parameter for DC power supplies. Leveraging extensive experience in power supply R&D, NGI has optimized component selection and implemented advanced switching power supply technologies. These advancements not only enhance the responsiveness of the power supply output but also significantly reduce output ripple and noise, thereby ensuring superior output power quality.
CC&CV priority function

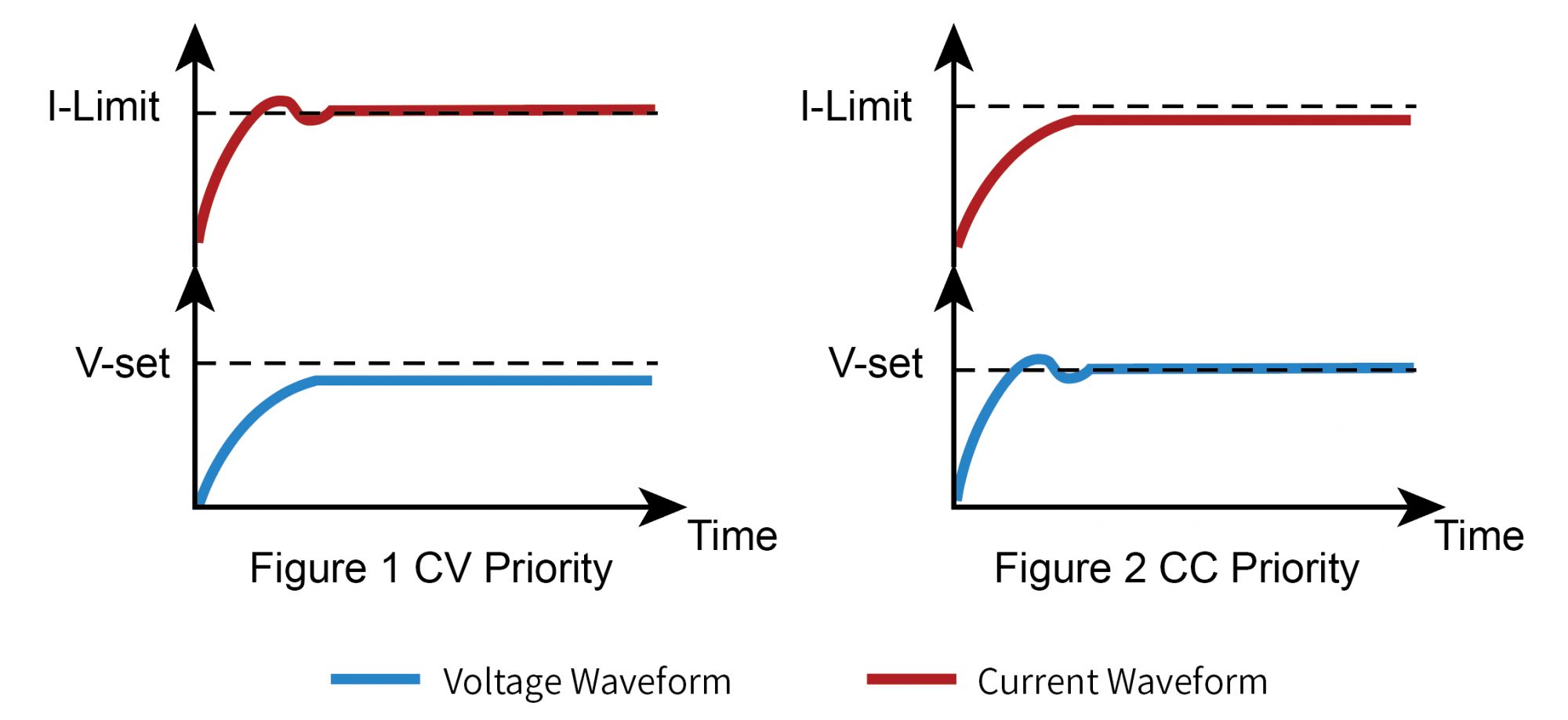

N36200 has the function of selecting priority of voltage-control loop or current-control loop, which enables N36200 to adopt the optimal test mode for different DUTs, and thus protect the DUT. As shown in figure one, when the DUT requires reducing voltage overshoot during test, such as supplying power to a low-voltage processor or FPGA core, voltage priority mode should be selected to obtain fast and smooth rise voltage. As shown in figure two, when the DUT requires reducing current overshoot during test, or when the DUT is with low impedance, such as battery charging scenario, current priority mode should be selected to obtain fast and smooth rise current.
Car waveform simulation for electronics performance test

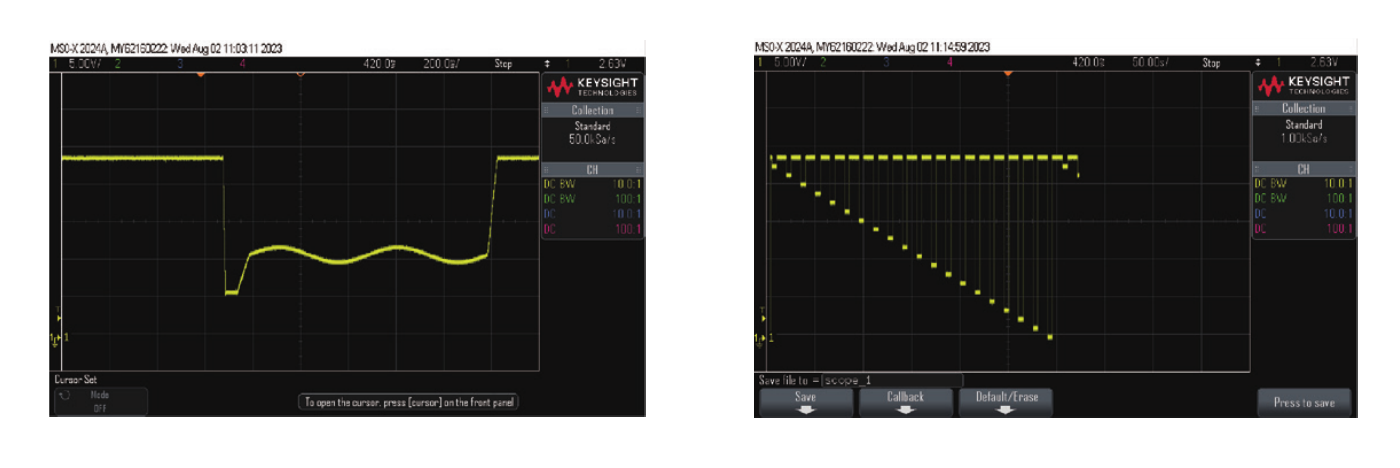

With the application of automotive electronics increasing every year, car manufacturers have formulated relevant test specifications, which focus on testing the immunity of electronic equipment to interference under certain scenarios of power transients, so that when designing automotive electronic hardware, it is important to set protections to avoid the effects of extreme situations. N36200 series can be standard with car waveform simulation, including car start-up waveform, car short-time voltage drop waveform, load dump waveform, car voltage reset test Waveform etc., meeting ISO16750-2, LV124 and other standards, used for electronics electric performance test.

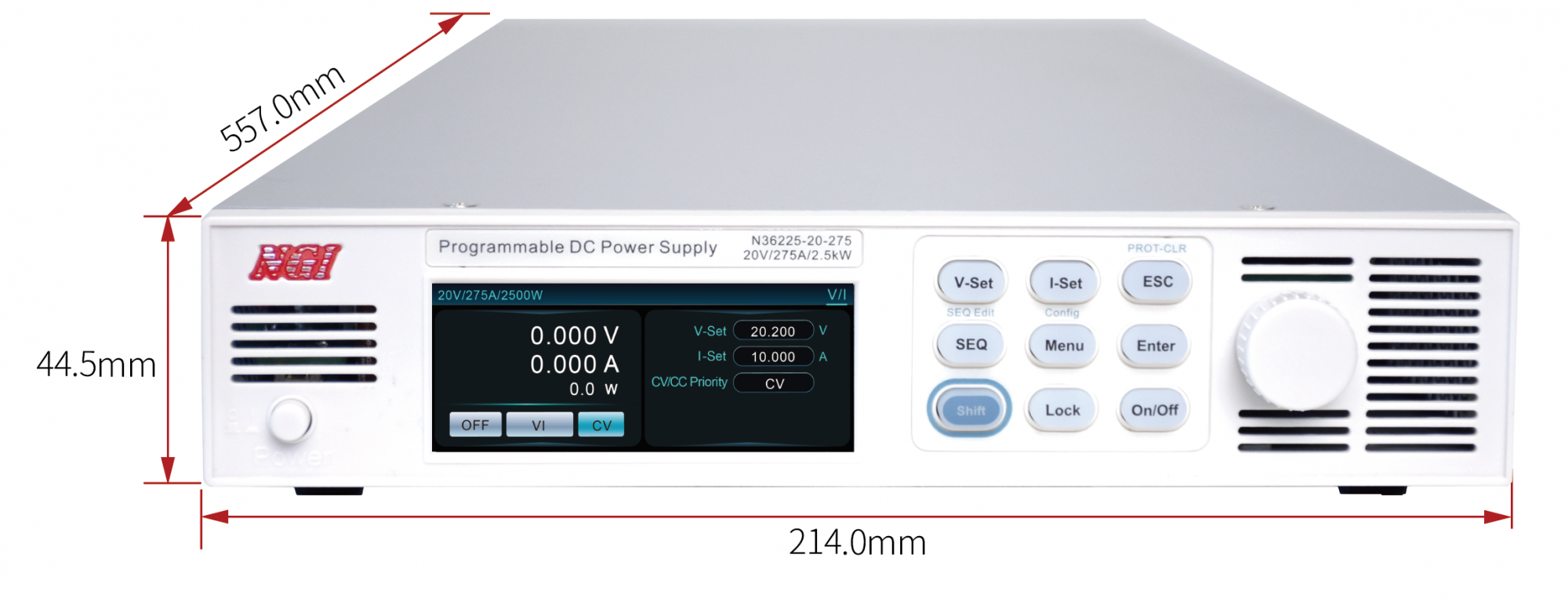

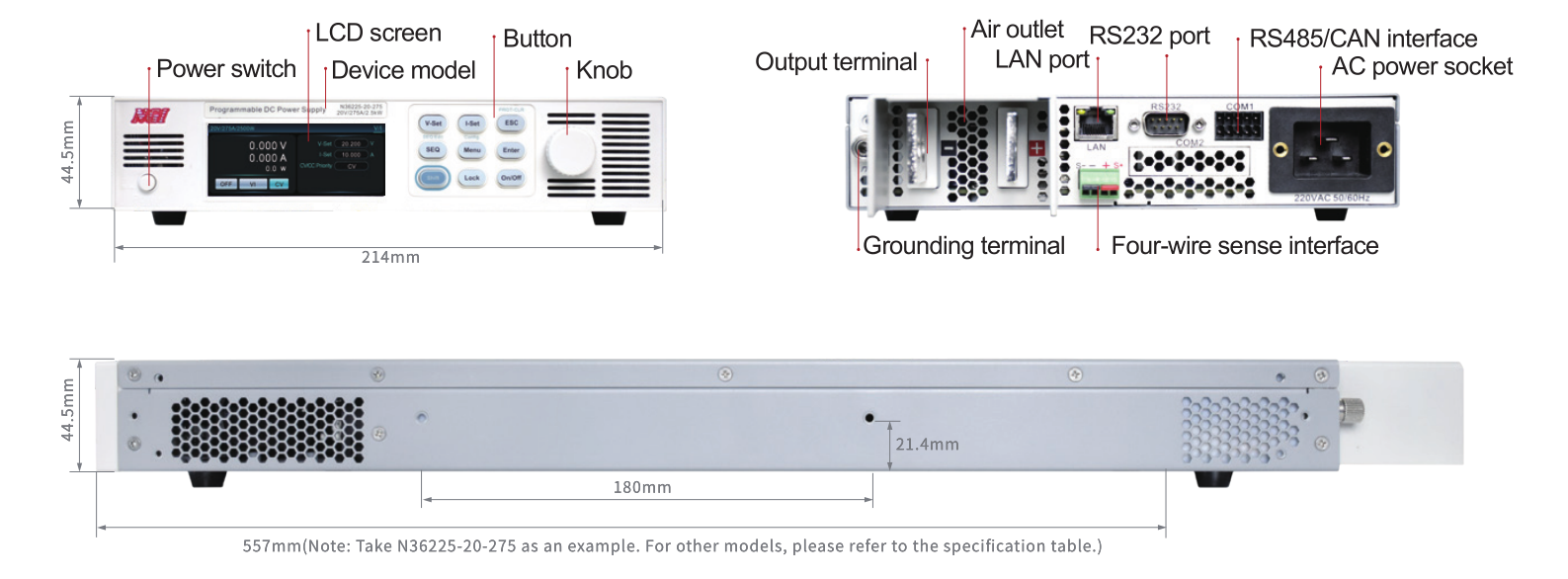

Product Dimension
