NXI-F1020 Dual-Slot Measurement&Control System Chassis

Home>Products>Modular Instruments

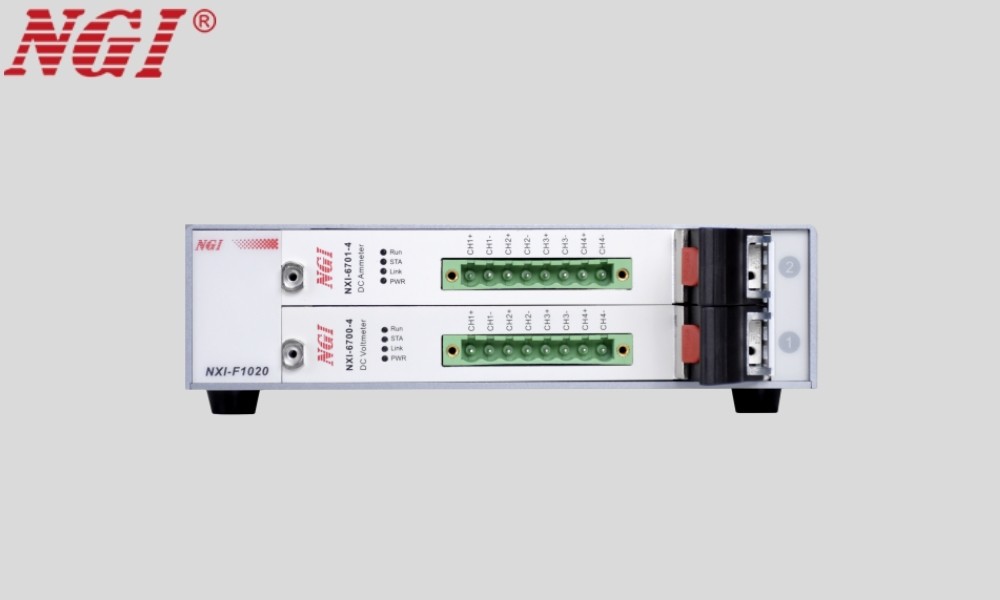

NXI-F1020 Measurement&Control System Chassis

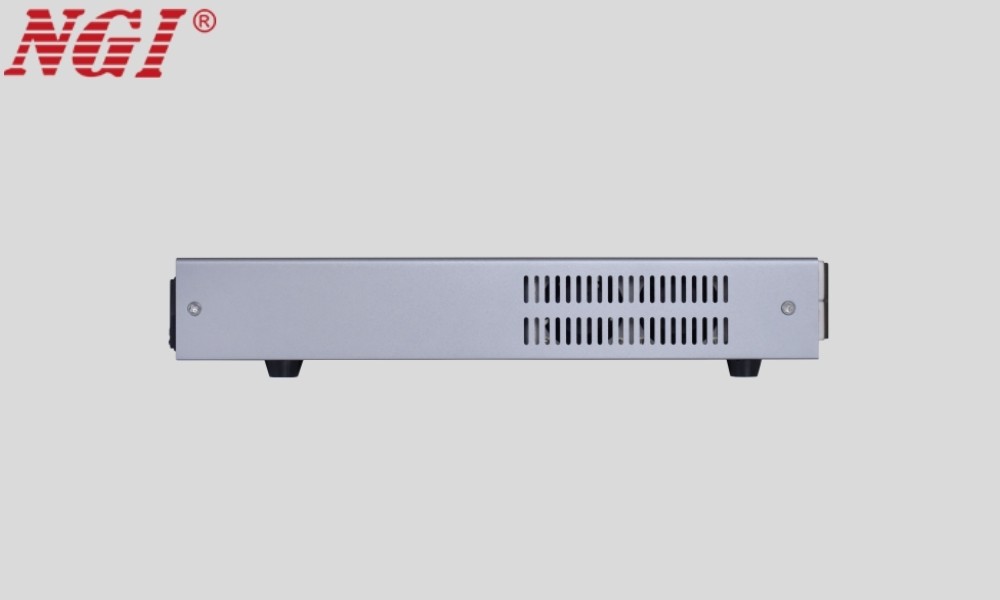

NXI-F1020 side view

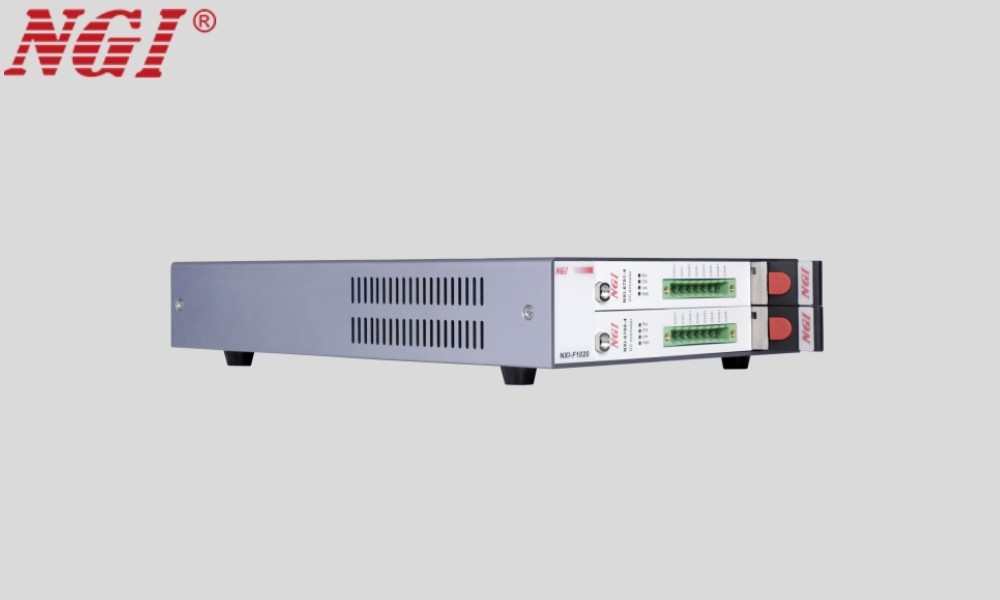

NXI-F1020 front panel

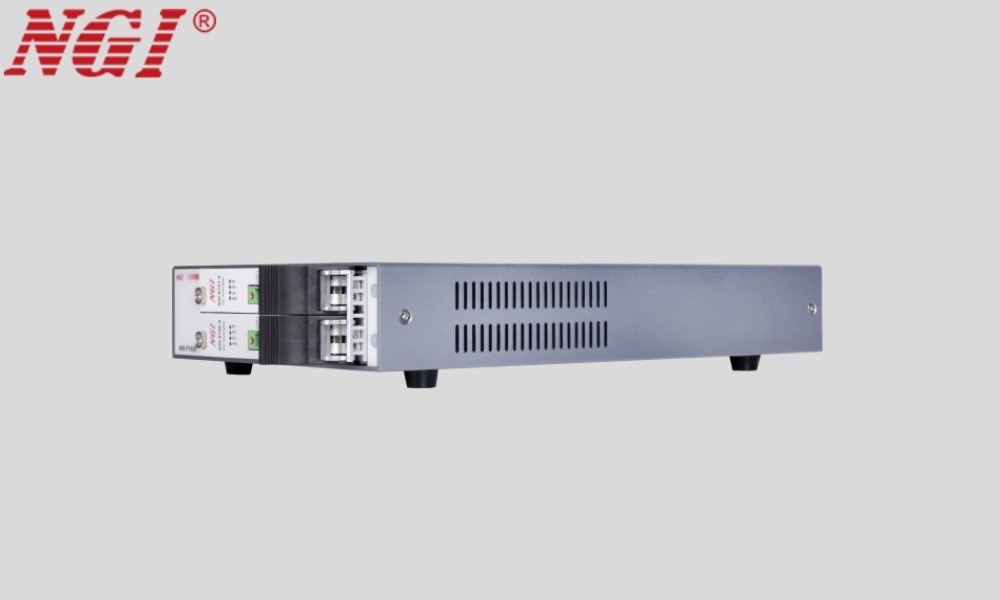

NXI-F1020 configuration
NXI-F1020 Dual-Slot Measurement&Control System Chassis
NXI-F1020 Dual-Slot Measurement&Control System Chassis
NXI-F1020 Dual-Slot Measurement&Control System Chassis
NXI-F1020 Dual-Slot Measurement&Control System Chassis

NXI-F1020 Dual-Slot Measurement&Control System Chassis


NXI-F1020 is a measurement and control system chassis based on NXI architecture (Network eXtension Interface), it adopts Gigabit LAN interface with high bandwidth, low cost, high real-time, no master-slave limitation and other advantages. With compact dual-slot chassis, NXI-F1020 can accommodate two 4HP width modules or one 8HP width modules, suitable for desktop test applications and ATE system applications.

Share to:
Main Features

●Electrical isolation between 2 slots

●Standard module design, accept arbitrary combination

●Support LAN/CAN communication

●Suitable for NXI modular instrument

●Built in Intelligent fan, heat dissipation without worry

●Power loaded up to 200W, no external power supply required

●Small size, available for desktop and integrated system test

Functions & Advantages

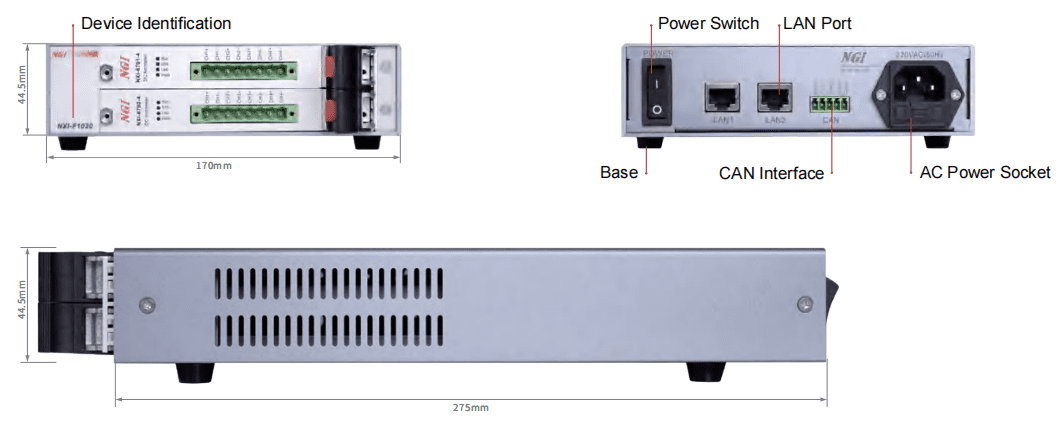

NXI-F1020 product appearance &size
