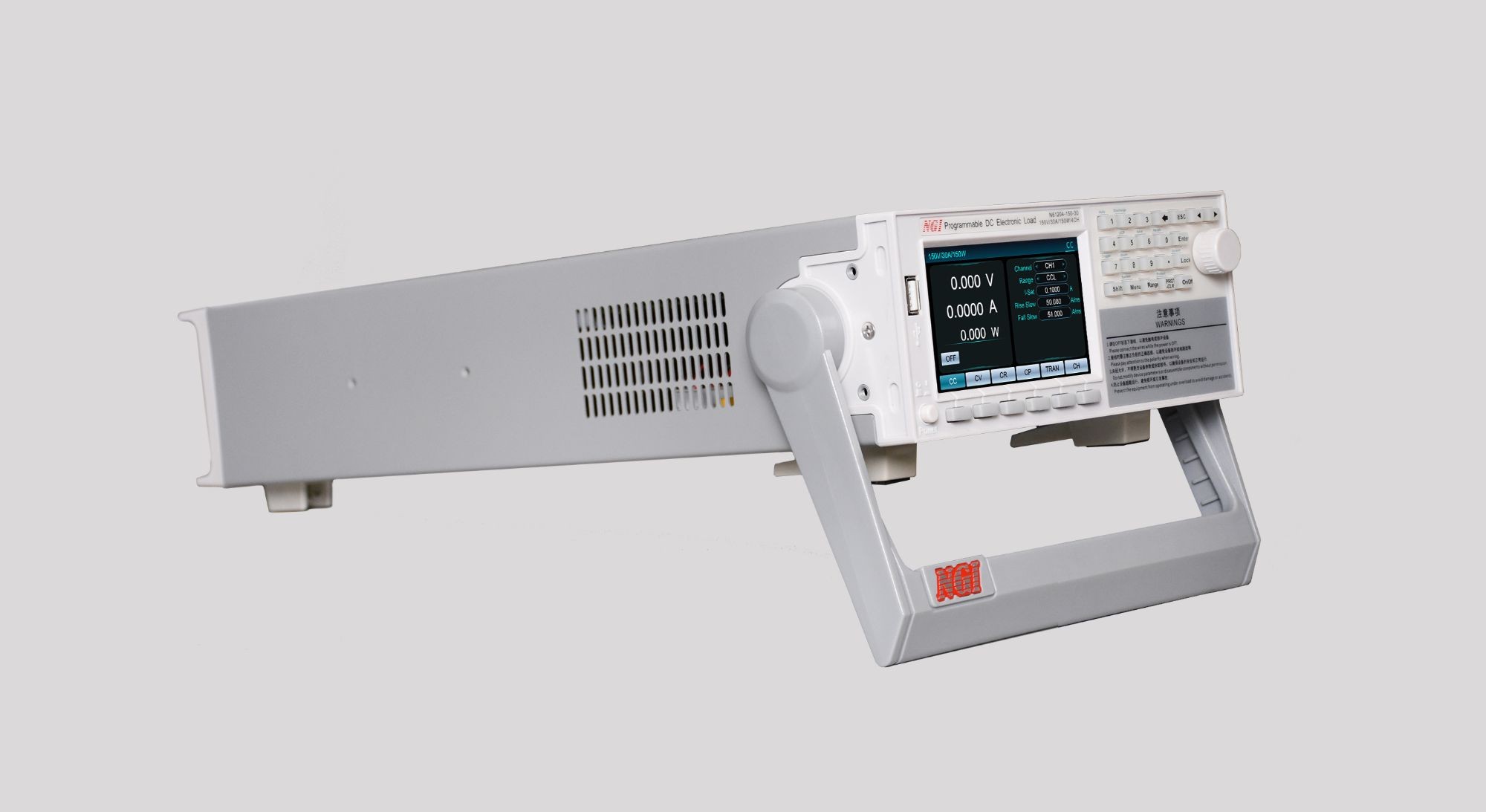

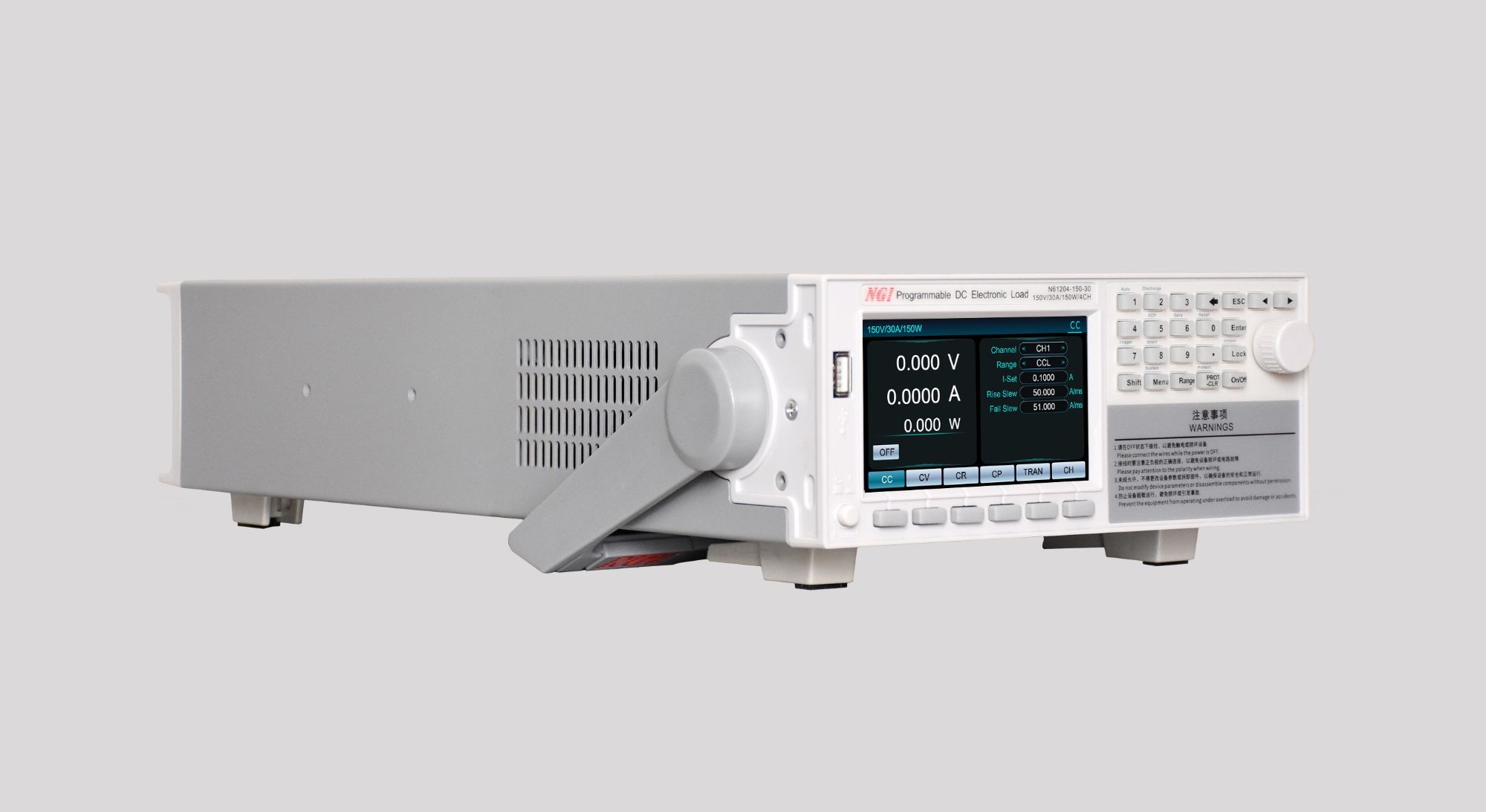

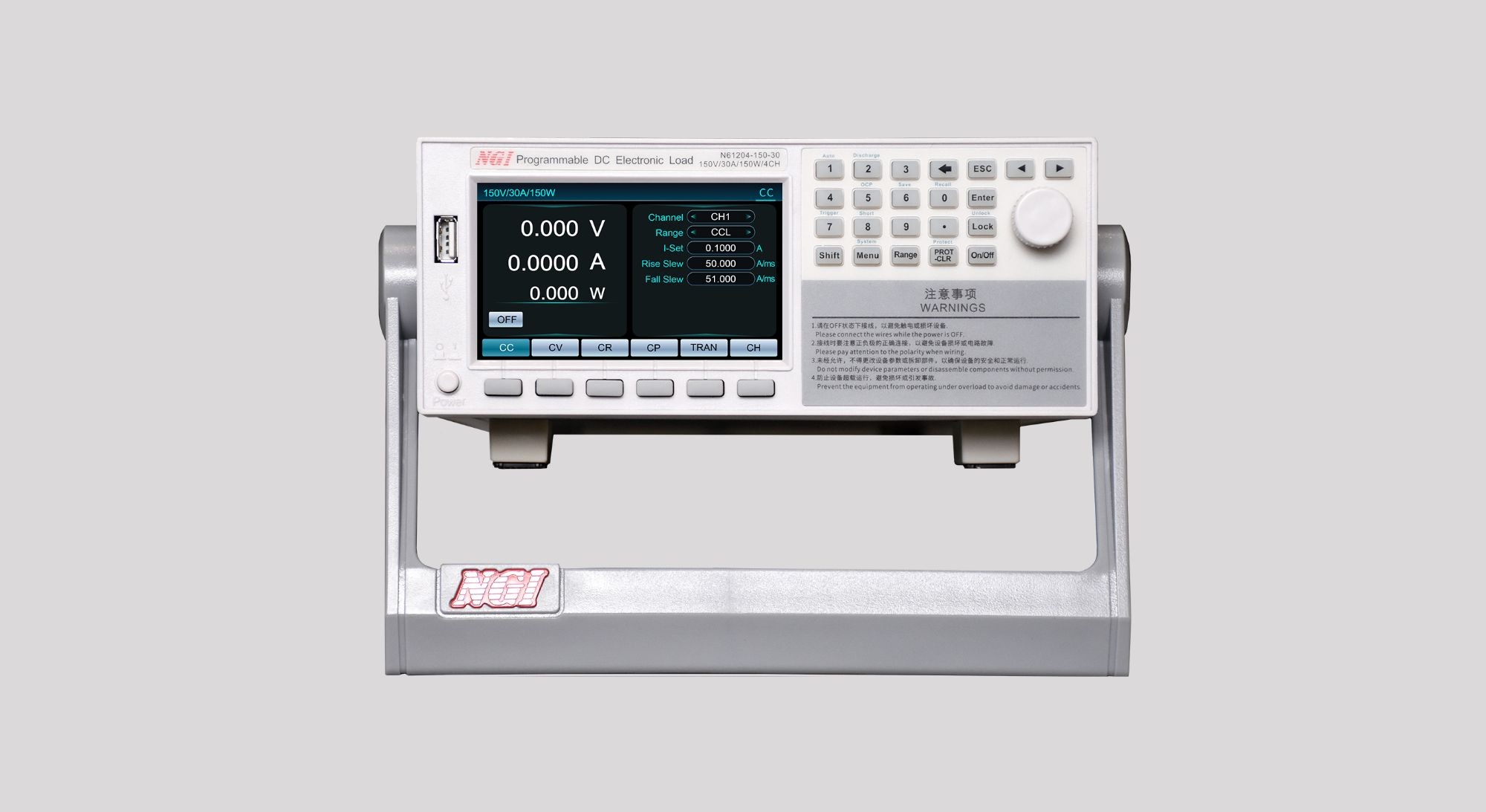

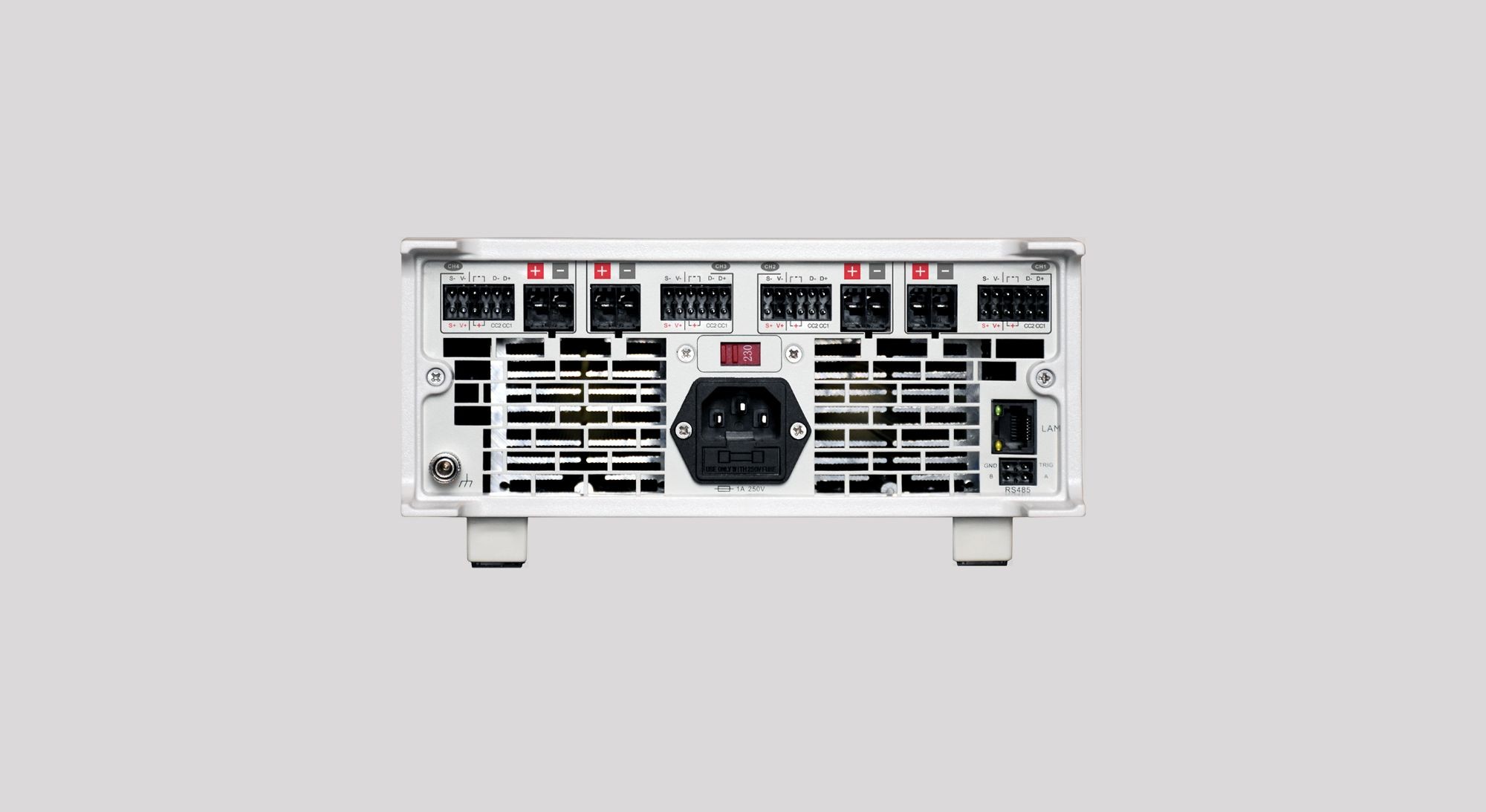

N61200 Series Multi-channel DC Electronic Load
The N61200 series is a DC electronic load with high integration and high performance. It integrates 4 channels in 2U height and half19 inch width chassis, each channel delivering 150W power, handling 150V input voltage, and supporting up to 30A current. The voltage,current, resistance, and power have a dual range design. It also allows parallel channel operation for flexible scalability to meet theextensive testing requirements of various devices.
Main Features
● Power specification: 150W/4CH, 300W/2CH
● Integrates 4 channels in 2U height and half 19 inch width chassis, parallel connection supportable between channels
● Support LED simulation function, LED power supply real load test
● Support CC, CV, CR, CP dynamic test, CC dynamic up to 30kHz
● Voltage, current, resistance, power dual range, wide measurement range
● Support sequence test, automatic test, Von/Voff, short-circuit simulation, ripple measurement functions
● Support OCP/OVP/OPP test, load effect test
● Support USB PD2.0/PD3.0/PD3.1/QC 2.0/QC 3.0/QC 4.0+/PE+/PE+2.0/FCP/SCP/AFC/VOOC protocols
● Support CC1/CC2 test, D+D-voltage monitoringSupport LAN, RS485 communication control
● Current rise/fall rate can be set, voltage loop response speed adjustable
Application Fields
Low to medium power supply testing: AC/DC, DC/DC converters, LED, communication
Consumer electronics testing: Mobile phone fast-charge adapters, mobile devices
Automotive component testing: Wiring harnesses, connectors, fuses, relays, central electrical boxes
Energy storage device discharge testing: Lithium-ion, lead-acid batteries, supercapacitors
Functions & Advantages
Channel parallelism and multi-power combinations

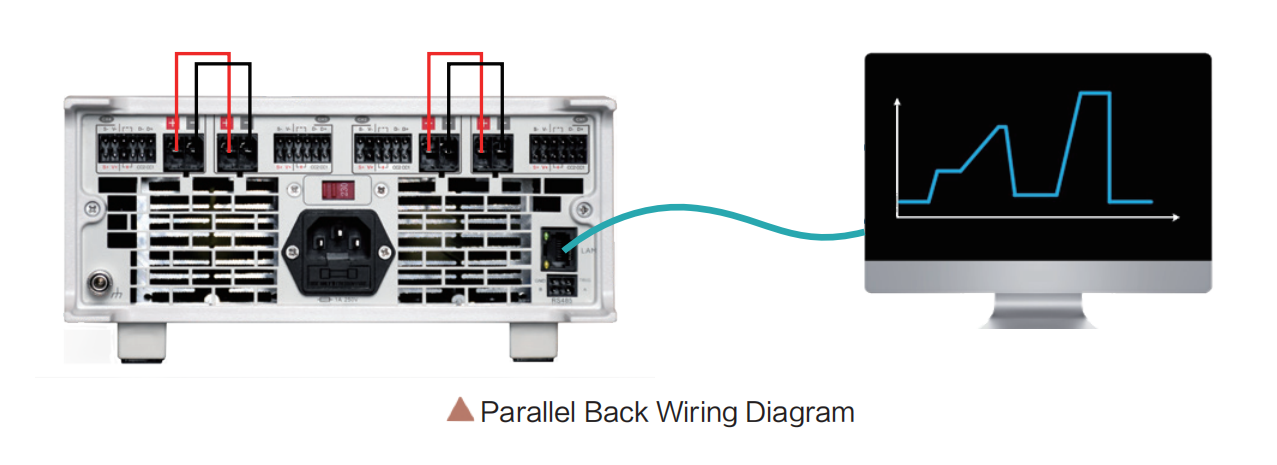

The N61200 series supports parallel connections between channels. By paralleling channels (e.g., CH1+CH2, CH3+CH4), users canachieve the desired current and power levels. Parallel settings and operations can be easily performed via master computer software or the device interface.
Multiple operation modes
N61200 series not only supports four basic modes of CC, CV, CP, and CR, but also supports four combined working modes of CV+CC,CR+CC, CV+CR, CP+CC, CR+CC mode is suitable for power-on test of source, preventing over current protection during power-on.CV+CR mode can replace Von function. CV+CC mode can simulate the working mode conversion process of battery charging. Userscan select different operation modes according to their test application.
LED light simulation to test LED driving power

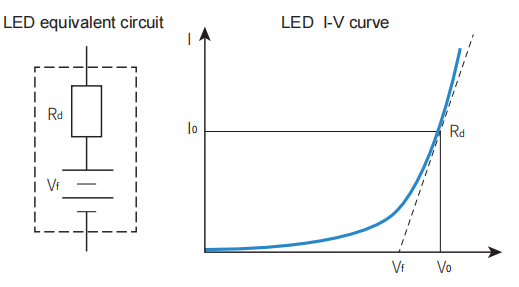

The electronic load has LED light simulation function.As shownin the figure, the LED equivalent circuit is to connect theresistance Rd with the voltage source Vf in series. Its I-V curveis equivalent to tangent of the real LED nonlinear I-V curve atthe operating point (Vo, Io).As the I-V curve of LEDs is non-linear,conventional electronic loads with CR or CV modes do not matchthe testing needs of LED power supplies, so more sophisticatedload models are needed to simulate the behaviour of LEDs.Under LED mode, users need to set three parameters to simulatereal LED light loading condition, including the rated output currentof LED driving power, LED operating voltage, and resistancecoefficient.
OCP (over current protection) test

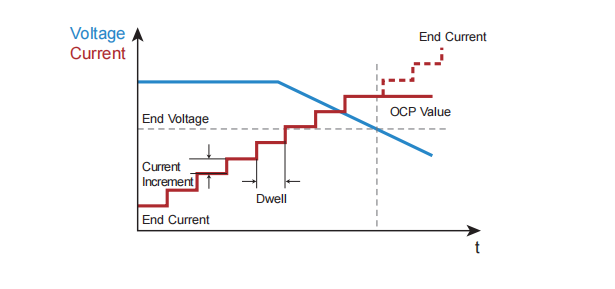

During OCP test, N61200 will load under CC mode and check whether the DUT voltage is lower than end voltage. If lower, N61200 willrecord the present loading current as the test result and shut the input to stop the test. If the DUT voltage is higher than end voltage,N61100 will increase the loading current until the DUT voltage is lower than end voltage or it reaches the Max. loading current.

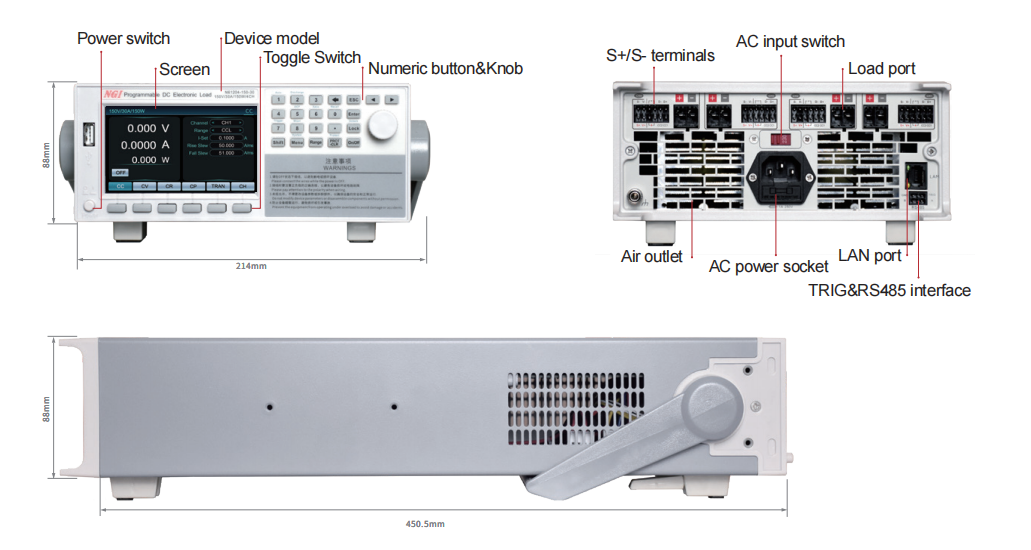

Product Dimension
