NGI modular instrument full range of switch module

September 27,2024
share to:

NGI's full range of switch module include matrix switch module, multiplexer switch module,relay switch module, etc., with the features of high flexibility, efficient development, high reliability, etc. It can efficiently expand and switch the number of test channels, reduce the test system costs, and are widely used in test and measurement systems with multi-channel requirements.

● NX1-4501
32x4 matrix switch module
●NX1-4301
Multiplexer switch module
●NX1-4200
8CH relay switch module
●NX1-4201
24CH relay switch module

High flexibility
Supports custom test topology, reducing test system costs

●Multiplexer module
1 line 48×1
2 lines 24×1
2 lines double layer 12×1
2 lines four layers 6×1
4-wire 12×1
2-wire 4×6
●Matrix module

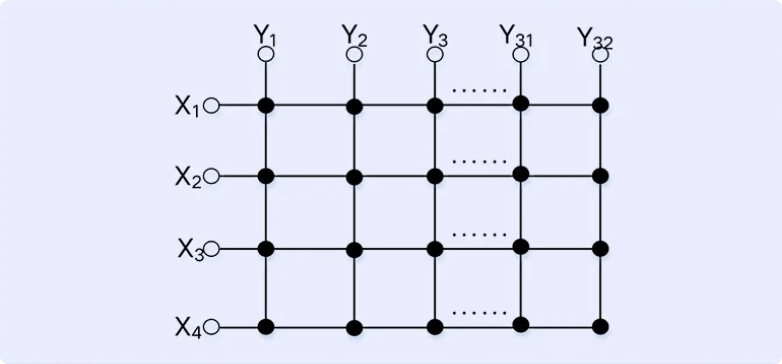

NGI matrix card

Efficient development
Provide DLL driver files, which can be used in development languages such as C++, .NET, VB, Delphi, etc.
Provide a wealth of Labview and C# host computer development routines.

High reliability
Switching times up to tens of millions, effectively ensuring the service life of the system.

Model and specification
NX1-4501-4/32 1-wire 32x4 matrix switch module
● 1-wire 32x4 matrix
● Switch specifications: 300VDC/250VAC/2A/60W
● Bandwidth 10MHz, operation time<3ms

NXI-4301-1/48 Multiplexing switch module
● Multiple topologies: 1-wire 48x1, 2-wire 24x1, 2-wire double-layer 12x1, 2-wire four-layer 6x1, 4-wire 12x1 (select NXI-TB2606).
● Maximum support 30V AC/60V DC, 1A, 30W
● Bandwidth 10MHz; Scan rate: 100CH/S

NX1-4200-8 Relay switch module
● Number of channels: 8
● Relay type: SPST
● Switch load: 8A/250VAC, 5A/30VDC
● Action time: 10ms typical value

NX1-4201-24 Relay switch module
● Number of channels: 24
● Relay type: SPST
● Switch load: 0.5A/120VAC, 1A/24VDC
● Action time: 10ms typical value

Application
Data acquisition system
Automotive electronics
Consumer electronics
Industrial automation
