NXI modular instruments full range of data acquisition cards

Data acquisition card is a modular instrument that converts low voltage analog signals (usually below 60V) into digital signals for further processing and analysis by computers. It is widely used in automotive electronics, aerospace, defense engineering, industrial automation, university research and other fields. NGI full range of data acquisition cards covers a wide range of voltage levels, sampling resolutions, and channel numbers to meet the needs of different test scenarios in various industries.

High integration
4U space can achieve up to 512 channels, A1/32 channels AO

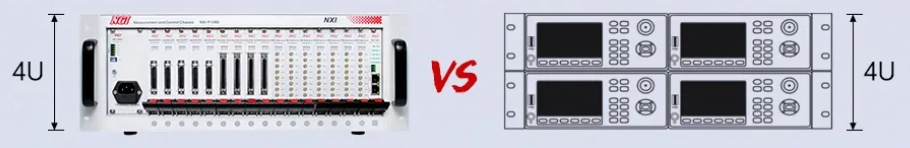

4U achieves 512 channels input and 32 channels output "VS" 4U achieves 320 channels input and 8 channels output

High-speed sampling
Supports up to 1.25MS/s sampling rate

Wide input range
Supports up to ±64V input

Multi-function

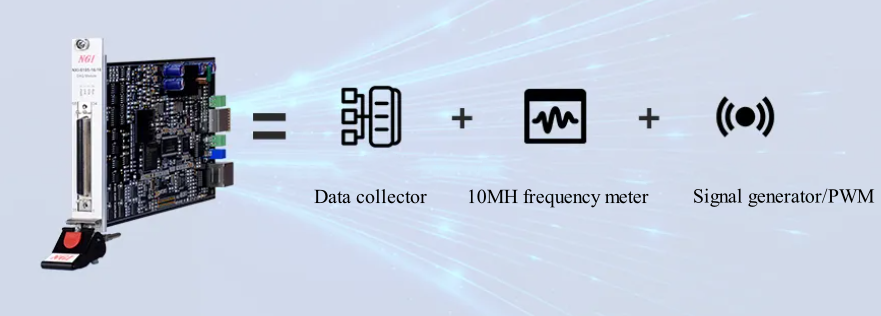

Supports multiple functions such as frequency meter, signal generator, PWM, etc.
Supports matrix card, multiplexer card, and supports channel expansion

Recommended model specifications
NX1-6100-32/12 high-speed data acquisition card
● 32 channels of single-ended, 16 channels of differential analog input, 2 channels of analog output
● Analog input: ±10V/±5V/±1V/±200mV
● Input/output resolution: 12 bits
● Analog output: ±10V
● Total sampling rate: 1.25MS/s
● Acquisition storage depth: 16MB

NX1-6105-16/16 high-speed data acquisition card
● Analog input: ±10V/±5V/±2.5V/+1.25V/±625mV
● Input/output resolution: 16 bits
● 16 channels of single-ended, 8 channels of differential analog input, 2 channels of analog output, 16 channels of digital input and output Output, 3-channel counter/frequency measurement/PWM output
● Total sampling rate: 1MS/s, acquisition storage depth: 8MB
● Analog output: 0~5V, 0~10V, ±5V, ±10V

NX1-6102-8/16 high-voltage analog input card
● 8-channel analog input: ±30V/+10V/±5V/±1V/±200mV
● Single-channel maximum sampling rate: 100KS/s
● Acquisition cache depth: 4MB*8
● Input resolution: 16 bits, accuracy up to: 0.03%+0.02%F.S
● Supports synchronous acquisition, software/external triggering, and channel isolation

NXI-6103-8/16 high voltage analog input card
● 8-channel analog input: ±60V/±10V/±5V/±1V/±200mV
● Single channel maximum sampling rate: 100KS/s
● Acquisition buffer depth: 4MB*8
● Input resolution: 16 bits, accuracy up to: 0.03%+0.02%F.S
● Supports synchronous acquisition, software/external triggering, channel isolation

Modular instrument integration

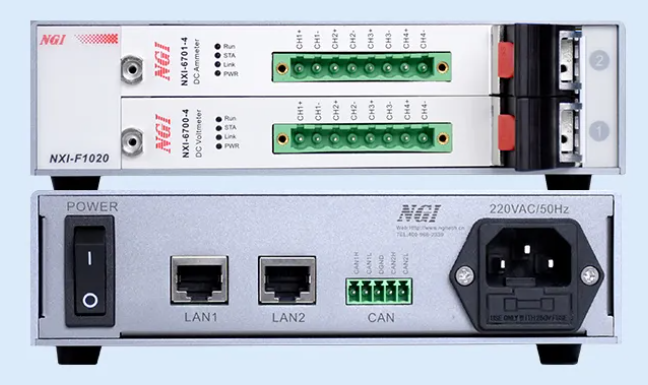

NXI-F1020 dual-slot measurement and control chassis

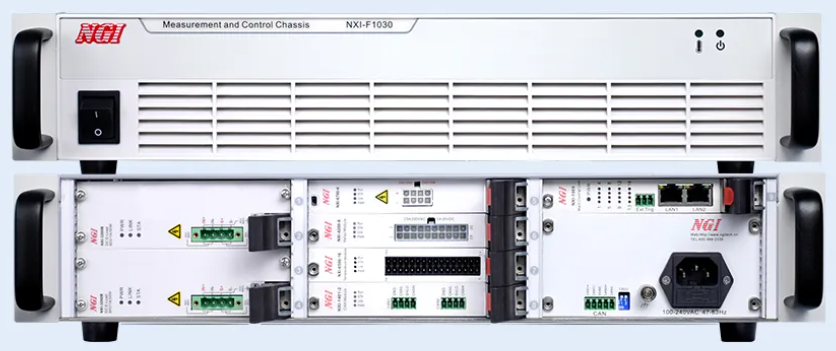

NXI-F1030 eight-slot measurement and control chassis

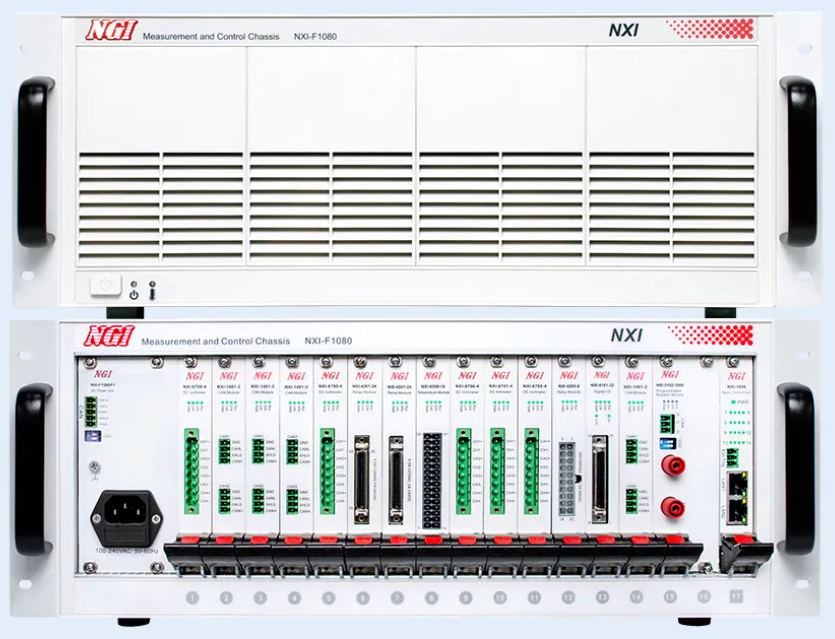

NXI-F1080 sixteen-slot measurement and control chassis
