NXI modular instruments full range of DC measurement card

NGI DC measurement card series,high-precision voltage/current and multi-channel measurement. Its measurement range and indicators are comparable to those of mainstream multimeters in the market, and can meet the measurement needs of DC power in a wide range of fields. NGI DC measurement card series adopts modular design, high integration and customizable combination, suitable for multiple industries such as smart manufacturing, automotive electronics, consumer electronics, and communication electronics.

High precision

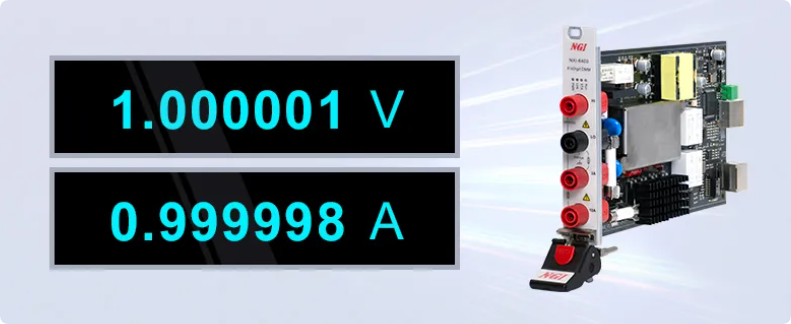

NXI-6400-1000/10 DC voltage and current measurement card, with a resolution of up to 6 and a half digits, DCV basic accuracy: 30ppm (0.0030%).

High integration
NX1-6700/NX1-6701 single card single slot 4 channels, 4U space can achieve 64 channels of DC voltage or DC current high-precision measurement. NX1-6400 single card single slot 1 channel, wide measurement range: 0.1uV~1000V/1pA~10A, 4U space can achieve 16 channels of DC voltage or DC current high-precision measurement.

One for four (4 41/2-digit multimeters) saves user space and cost

Custom combination
NGI DC voltage/current measurement card series with matrix cards and various switch cards can flexibly expand the number of channels, for example: NXI-6400-1000/10 DC voltage/current measurement card with NX1-4301-1/48 multiplexer card, using 2-wire 24x1 topology, can be expanded to 24-channel DC voltage/current measurement.

Model Specifications
NX1-6400-1000/10
DC Voltage and Current Measurement Card
Number of Channels: 1CH
Resolution: 6 and a half digits
DCV Basic Accuracy: 0.0030%+0.0004%F.S.(30ppm)
DCV Range: ±100mV/±1V/+10V/+100V/±1000V
DCI Range: ±1μA/+10μA/+100μA/±1mA/±10mA/+100mA/±1A/±3A/±10A
Maximum Reading Rate: 4000 Readings/Second

NX1-6700-4
Multi-channel DC voltage measurement card
Number of channels: 4CH
DCV range: ±600V/±60V/±6V
Resolution: 10mV/1mV/0.1mV
DCV basic accuracy: 0.025%+0.025%F.S
Maximum reading rate: 50 readings/second, sampling rate adjustable

NX1-6701-4
Multi-channel DC current measurement card
Number of channels: 4CH
DCI range: ±10A/±1A
Resolution: 1mA/0.1mA
DCl basic accuracy: 0.1%+0.1%F.S
Maximum reading rate: 50 readings/second, sampling rate adjustable
