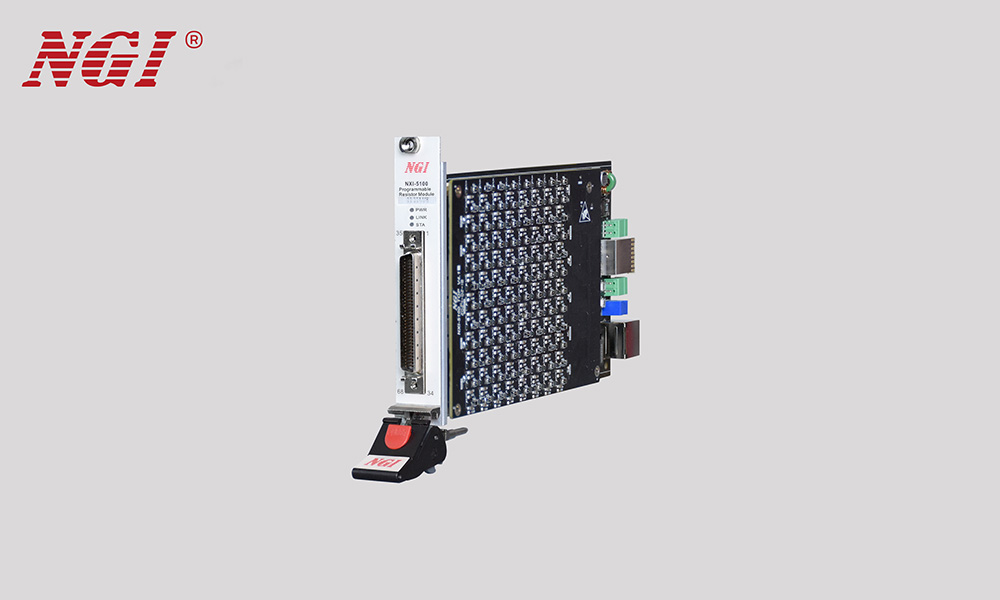

NXI-5100 Series High Density Programmable Resistance Module
NXI-5100 is a multi-channel programmable resistance module. Its optional range of resistance is 0Ω~11.11MΩ. For different applications, the flexible design architecture supports a single module with optional 8, 12, 16, and 24 channels. Resistance resolution is up to 1Ω, to meet the needs of different test scenarios. NXI-5100 series can be widely used to simulate NTC resistor,
resistive sensor and other simulation test scenes.
Main Features
● Optional in 8/12/16/24 channels
● Optional resistance range: 0Ω (short circuit)～11.11MΩ
● Supports NTC short-circuit simulation and NTC open-circuit simulation [1]
● Resistance programming resolution up to 1Ω
● Resistance accuracy: ≤2MΩ: 0.1%+Rr, >2MΩ: 1%+Rr
● Resistance maximum power: 0.25W
● Maximum operating voltage: 125VAC, 60VDC
● Single module with single slot, applicable to NXI-F1000 series chassis
● Supporting 12VDC power supply input, LAN communication control
● Supporting Modbus-RTU and SCPI protocols
Note [1]: The 600kΩ and 6MΩ models support NTC short-circuit simulation and open-circuit simulation, others only support NTC short-circuit simulation.
Application Fields
