N62300 Series Portable DC Electronic Load
The N62300 series is a compact, portable DC electronic load. Each channel supports up to 200W of power, with an input voltage range of 80V and a current capacity of up to 30A. Featuring dual-range design for voltage, current, resistance, and power, this series meets the testing requirements of a wide range of devices. The N62300 series supports four operating modes: CC, CV, CR, and CP. Additional features includeSEQ test, OCP/OVP/OPP, and standard interfaces such as LAN and RS485. This product is ideal for applications in consumer electronics, production lines, and bench repair.
Main Features
● Voltage: 0–80V, Current: 0–30A, Power: 0–200W
● VoltageAccuracy: 0.05% + 0.1% F.S.; CurrentAccuracy: 0.1% + 0.1% F.S.
● Portable design with optional 4U standard rack mounting for up to 6 load channels
● Supports OVP , OCP , OPP, and OTP
● Features Von/Voff functionality and simulated short-circuit capability
● Dual-range design for voltage, current, resistance, and power, ensuring broad measurement coverage
● CommunicationInterfaces: RS485 and LAN (for debugging purposes)
Functions & Advantages
Application Fields
● Testing of AC/DC power supplies, DC/DC converters, and other low-power power modules
● Testing of consumer electronics such as smartphones and mobile devices
● Testing of low-power batteries for drones, portable devices, and similar applications

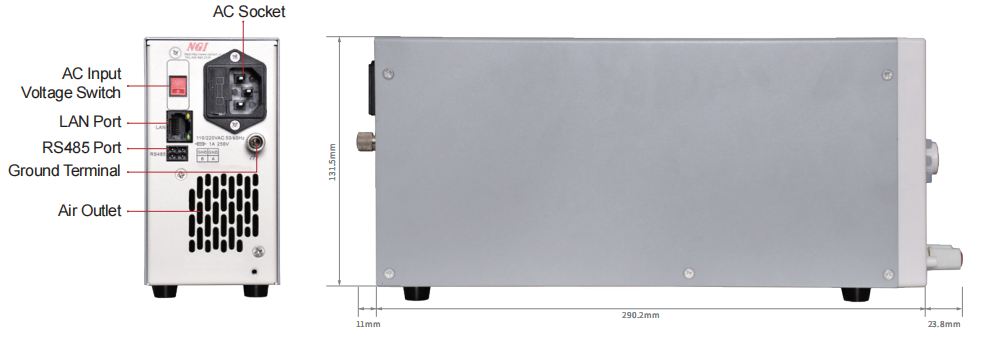

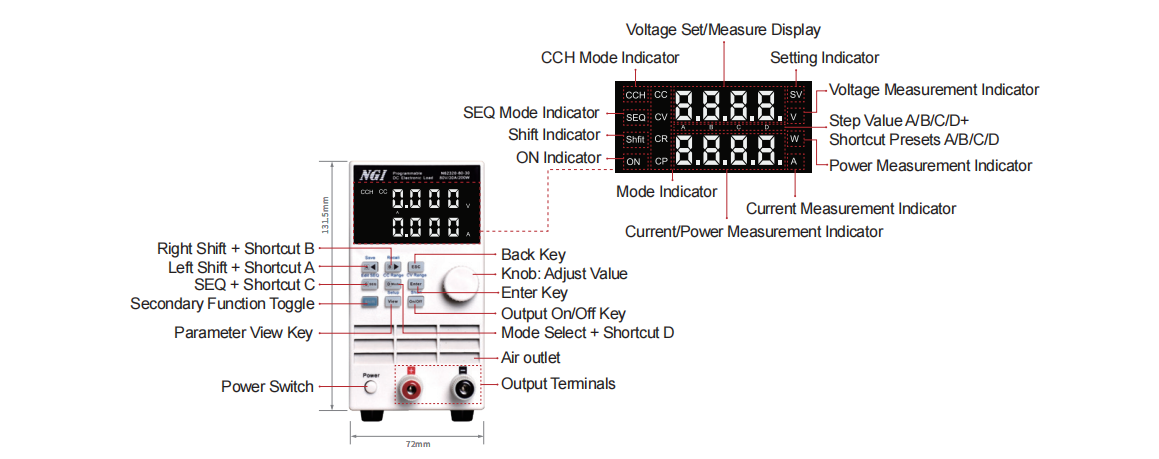

Product Dimension
