Background
Customer Y is one of the world's top 20 auto parts supplier, with global sales of more than 15 billion USD and more than 57,000 employees, focusing on automotive interior and exterior decoration, car seats, cockpit electronics and passive safety fields,intelligent cockpit and lightweight technology, assistance in car manufacturers to explore the future mobility space, and provide complete cockpit solutions. BMS is a key component of electric vehicle, which has the functions of battery voltage and temperature acquisition, state estimation, charge and discharge management, among which battery voltage acquisition is an important basis of BMS. As a higher test requirements for electric vehicle battery life, SOC estimation, etc in this industry, the accuracy of BMS single voltage acquisition is also getting higher and higher. It is understood that the accuracy of some EV BMS in the market is better than 3mV, or even 1mV.
User experience with other brand

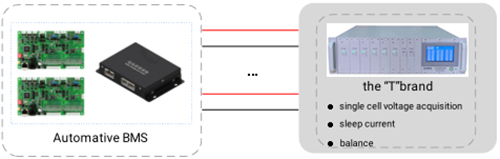

In the early stage, customer Y needs to conduct single cell voltage acquisition, sleep current, balance and other tests on the automobile BMS board. The customer chooses a T brand battery simulator, and the voltage accuracy and current readback accuracy cannot fully meet the actual needs.
 | ||
| Test item | Test instrument | Exsiting problem |
| Single cell voltage acquisition | T battery simulator | 1）Low voltage accuracy: ≤±3mV@0.1~6V 2）Current readback accuracy just 1mA |
| Sleep current | ||
NGI BMS testing solution

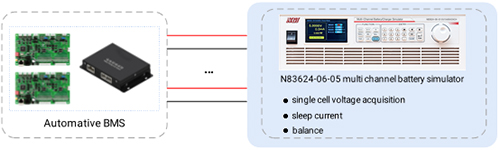

To meet with customer needs, NGI provides N83624 multi-channel battery simulator with higher accuracy, which perfectly solves the customer's problems such as single cell voltage acquisition and sleep current read-back accuracy.
 | ||
| Test item | Test instrument | Advantages |
| Single cell voltage acquisition | NGI battery simulator | 1）Accuracy of full scale range is 0.6mV 2）Support μA level measurement |
| Sleep current | ||
In addition, NGI can also provide 0.1mV ultra-high precision multi-channel battery simulator to meet the needs of higher precision BMS testing，for more information,please visit our official website.
