ALL IN ONE | One Machine, One System - N9000 Unleashes Testing Possibilities

In modern test and measurement, clients seek efficient, precise, and highly integrated systems.Traditional methods often require multiple instruments working together, leading to space, transportation, and connection complexities.This article introducesthe N9000 seriesmeasurement and control platform,which offers powerful functionality and high integration, making one chassis a complete test system.

Three Typical Testing Scenarios

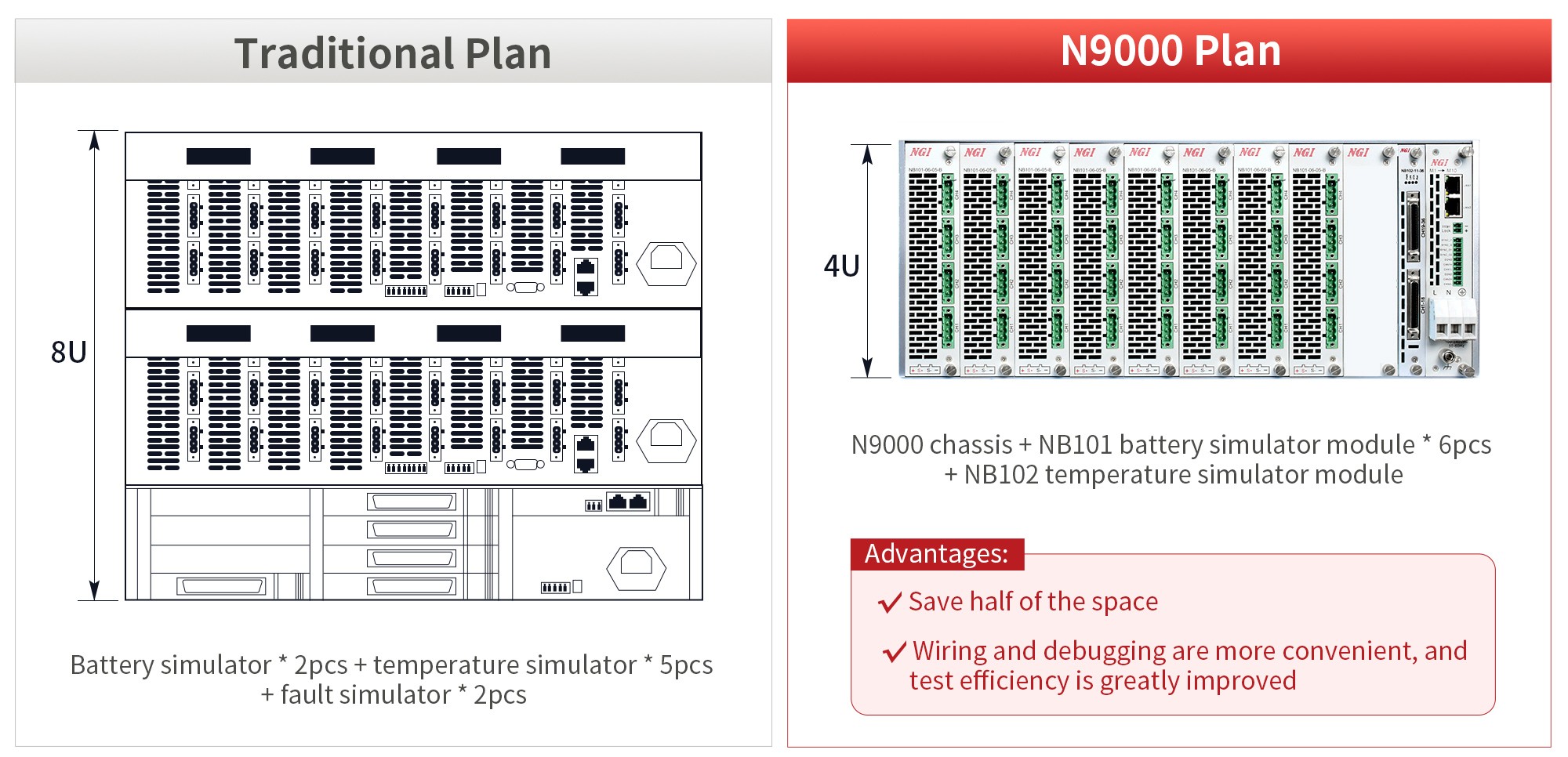

Scenario 1: BMS Testing

A top 3 global BMS R&D manufacturer needed to test a battery management system with 32 channels for cell voltage simulation, 32 for fault simulation, and 34 for temperature simulation. The N9000 integrates all these functions in a single chassis,reducing test space by half and simplifying wiring and debugging.

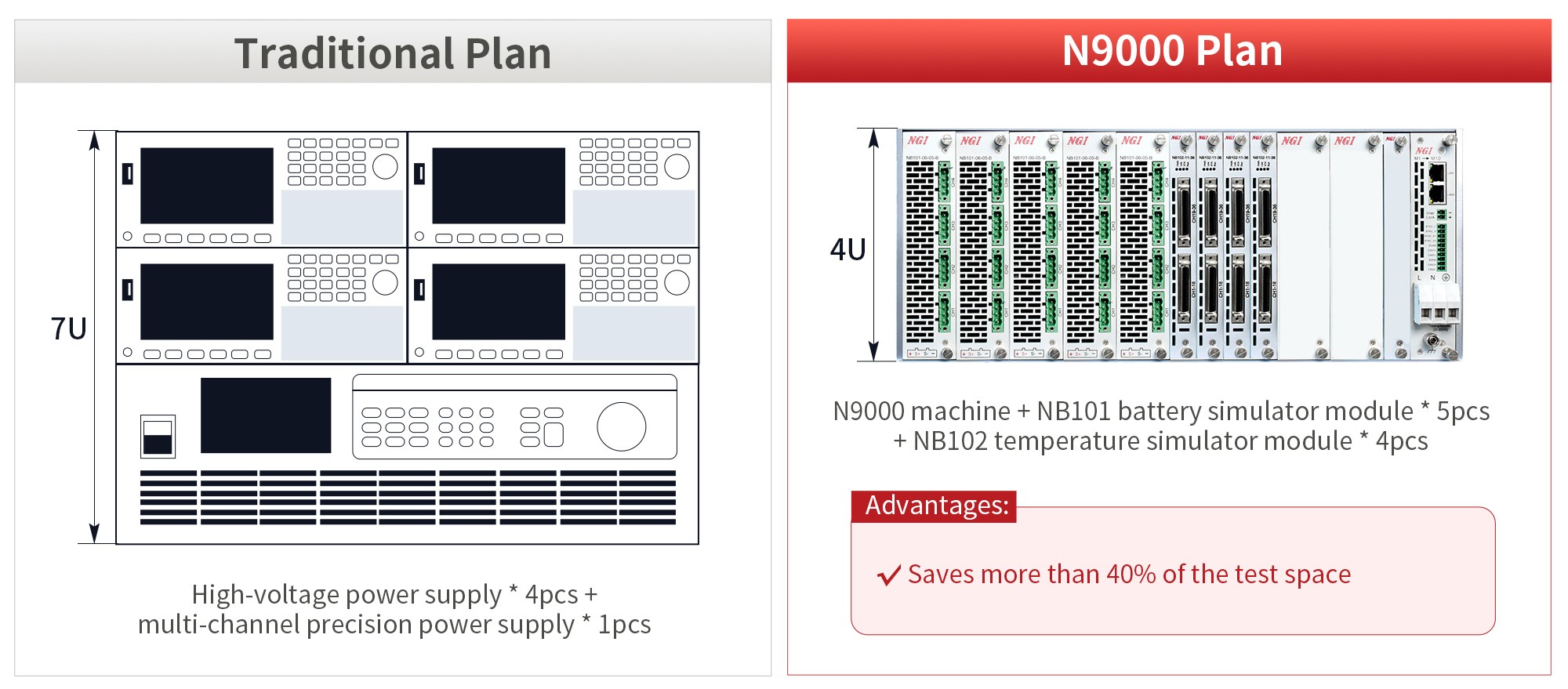

Scenario 2: Multi-channel High and Low Voltage Power Supply

A top research institute required a high and low voltage power system with 4 channels at 2500V high voltage and 20 channels at 5V low voltage.The N9000 saves over 40% of test space for this application.

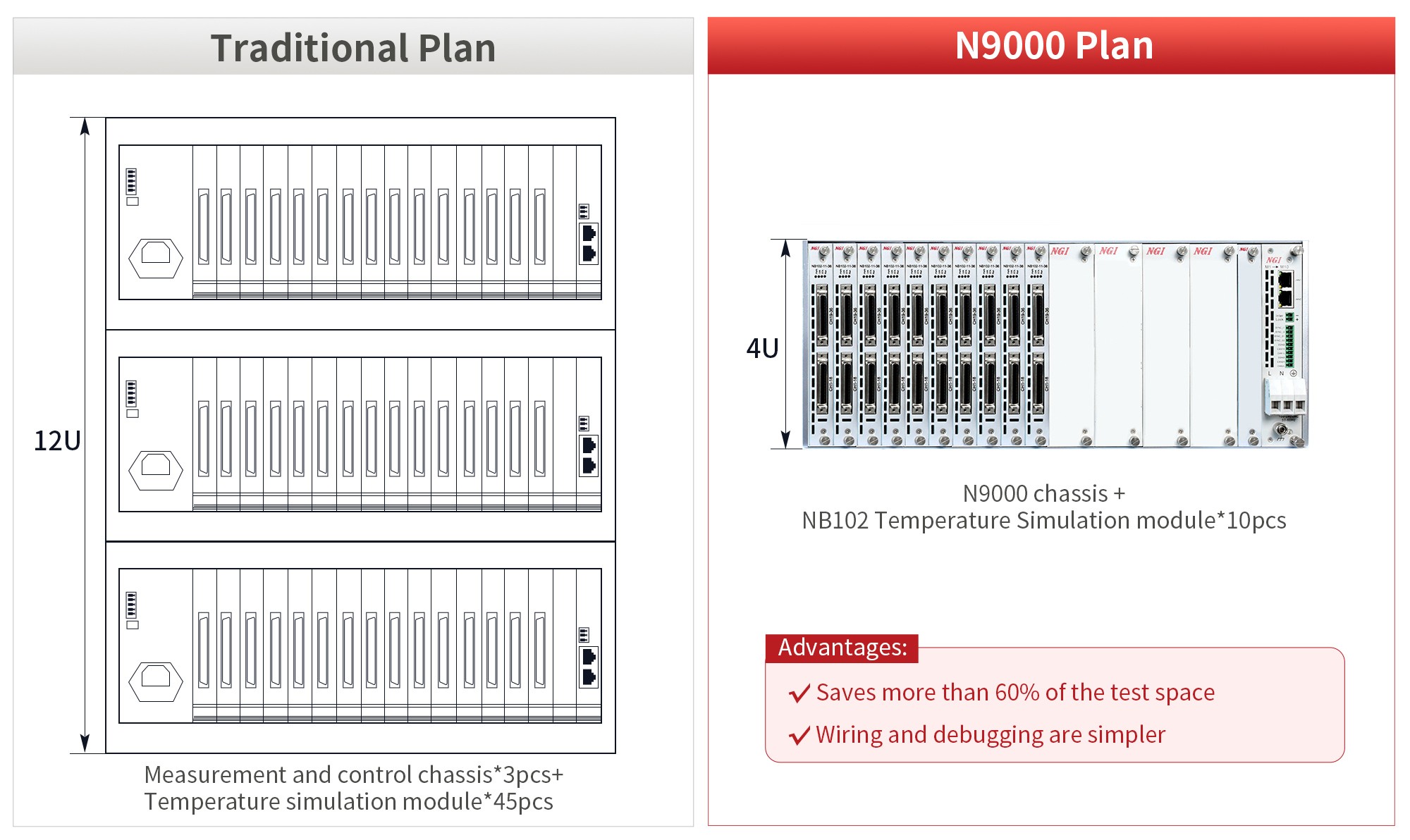

Scenario 3: Multi-channel Temperature Emulation

A client needed a 360-channel temperature emulation test system. The N9000 supports inserting 10 programmable resistancemodules, each with 36 channels, meeting the requirement andsaving over 60% of space compared to traditional solutions, with simpler wiring and debugging.

NGI：One Machine, One System - N9000 Unleashes Testing Possibilities

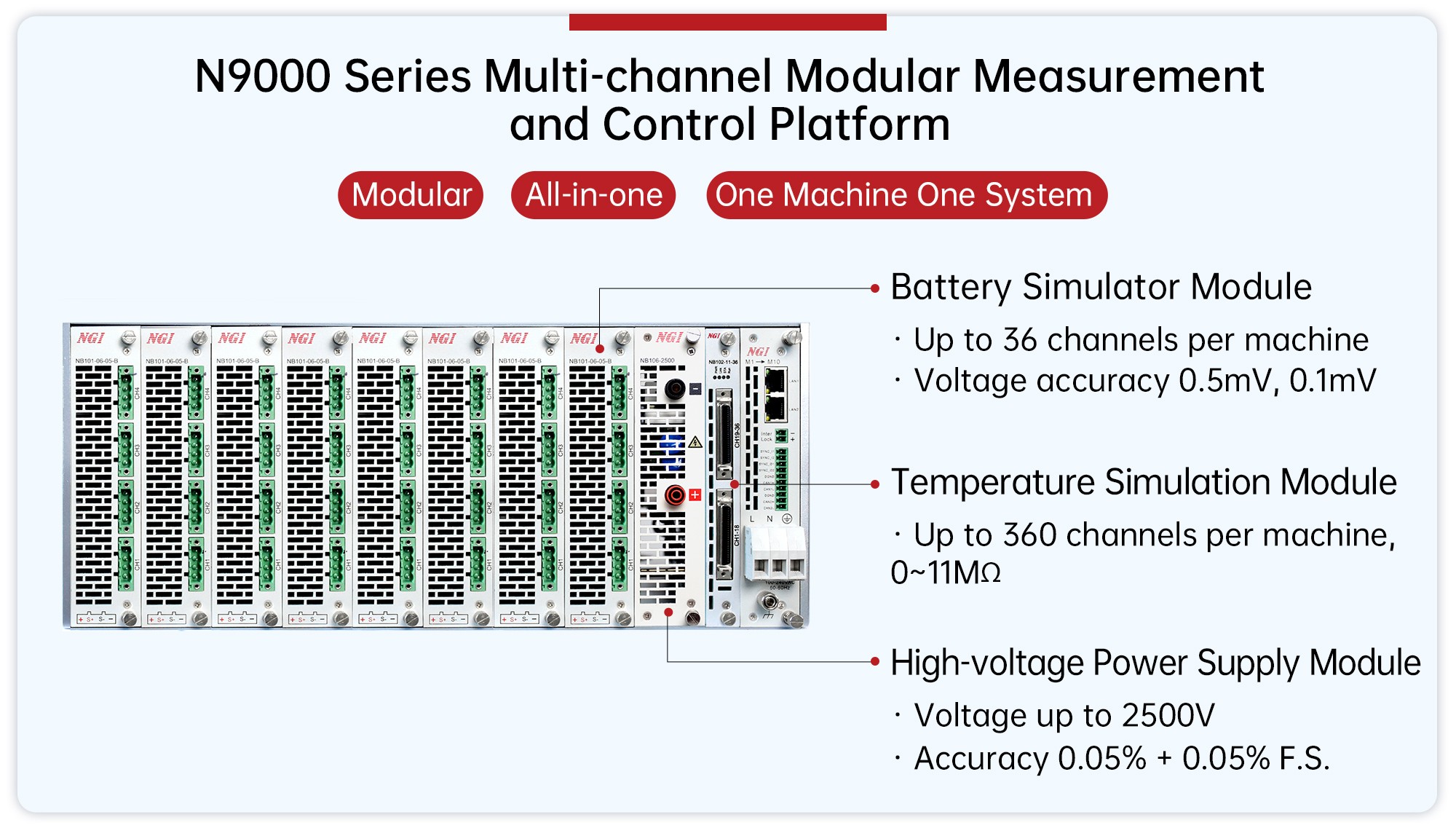

The N9000 series adopts a modular design. Its standard 19-inch 4U chassis has 10 slots for measurement and control modules,supporting functions like battery simulation, programmable resistance, and high voltage power supply.The modules are electrically isolated to avoid interference, allowing flexible configuration based on user needs. The product achieves onemachine, one system, saving testing space, reducing wiring and debugging time, and boosting testing efficiency. It is widely used in new energy vehicles, energy storage, semiconductors, education, and scientific research.
